Disassembling Front Apron

  1. Unclip cover for towing lug.
    1. 1.1. Release locking lug -arrow A-  .
    2. 1.2. Press out cover -arrow B-  .
    3. 1.3. Unhook safety strap -arrow C-  .

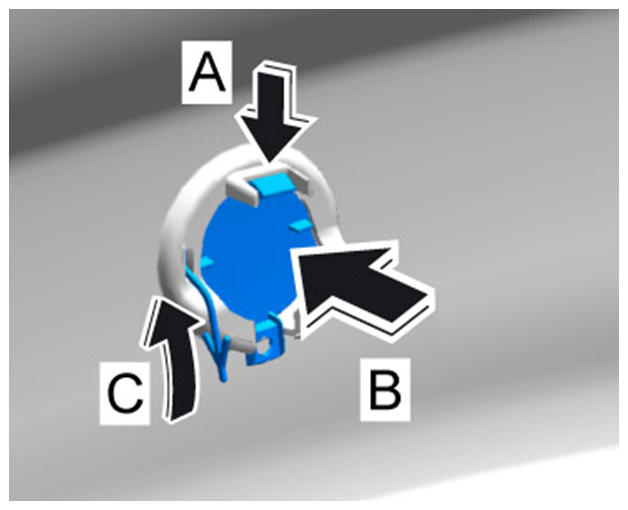

      Fig 1: Towing Lug Cover
      G09810850Courtesy of PORSCHE CARS NORTH AMERICA, INC.
