Technical Values

Location Description Type Basic value Tolerance 1 Tolerance 2
Front apron to lock carrier   Tightening torque 5 Nm +/-0.5 Nm (+/-0.5 ftlb.)

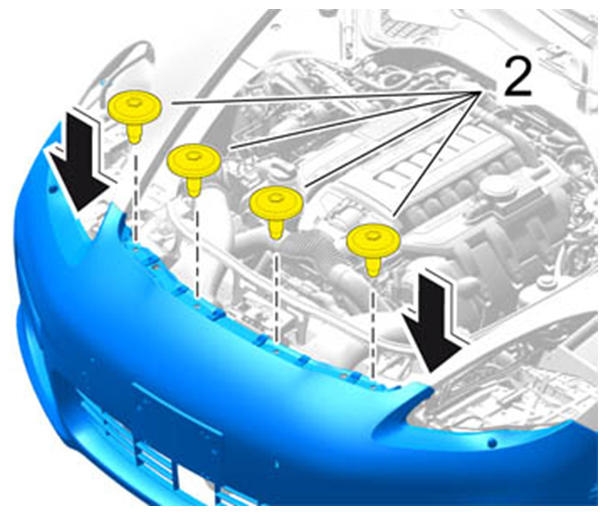

G09810826

Front screws at the top
Front apron to lateral wing   Tightening torque 2.8 Nm (2 ftlb.) +/-0.5 Nm (+/-0.5 ftlb.)

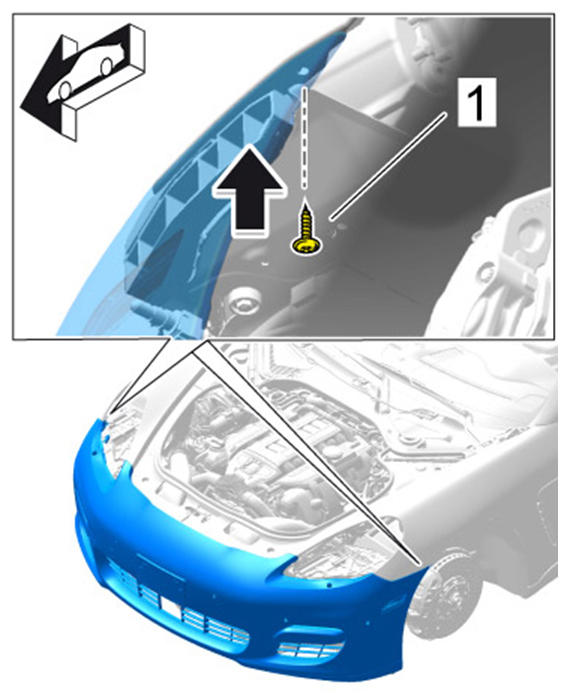

G09810827

Wing screw
