Technical Values

Location Description Type Basic value Tolerance 1 Tolerance 2
Fastening screw securing bumper to longitudinal member   Tightening torque 50 Nm (37 ftlb.) +5 Nm (+3.5 ftlb.) -7.5 Nm (-5.5 ftlb.)

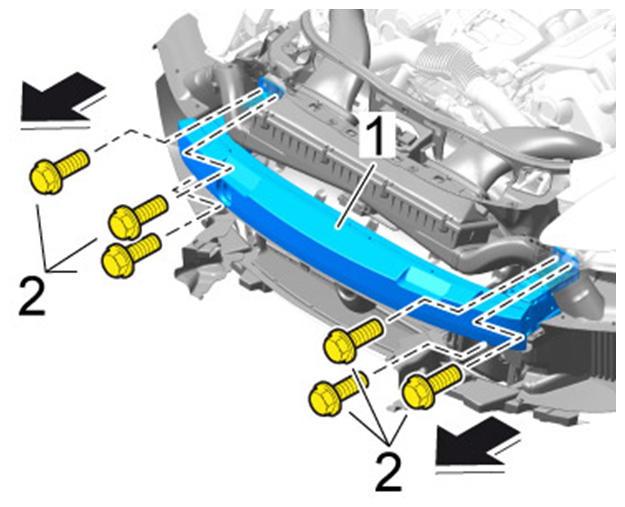

G09810819

Bumper mounting
