Securing Radiator Module

Information

The number of plug connections can vary, depending on equipment.

Information

• To avoid damage to the wing, the radiator module must be secured at the same height before the bumper is removed.
• This can be achieved either by securing it to the subframe using tie-wraps or by supporting it on a workshop jack or transmission jack.

1. Secure radiator module -7-  with tie-wraps -9-  to the subframe -8-  .

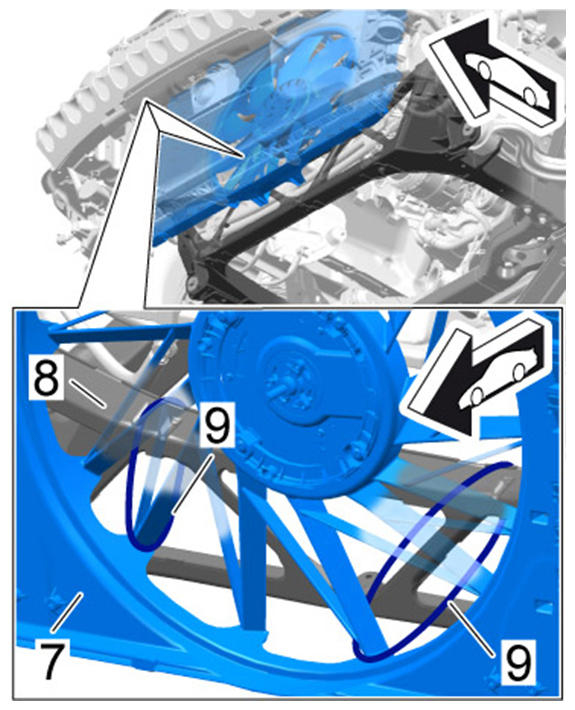

   Fig 1: Securing Radiator Module

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.
