Removing Frame For Light

Information

The insulating mat will be damaged irreparably during removal and must be replaced.

1. Heat up insulating mat with a hot-air gun and remove it.

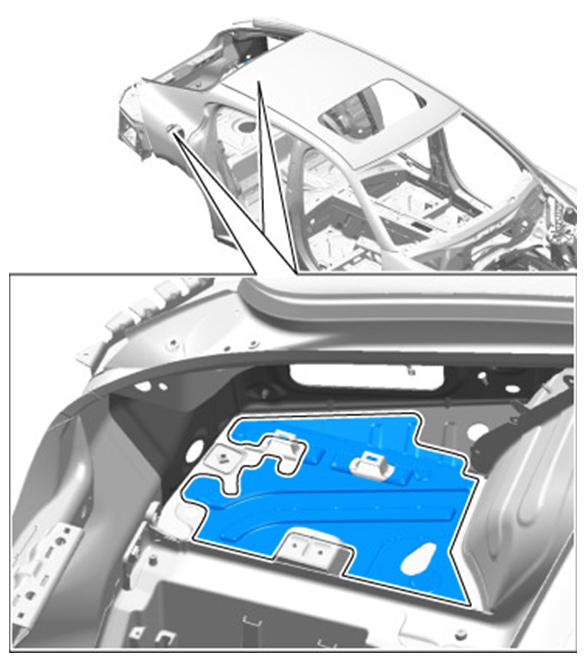

   Fig 1: Identifying Heat Up Insulating Mat

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.
2. Drill through clinch points using a → Diameter: 6.5 mm  .

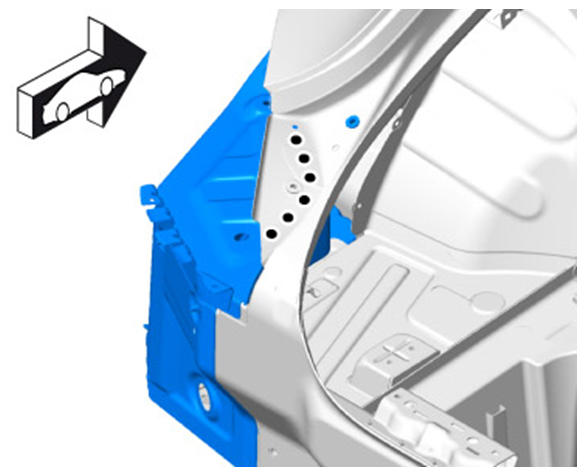

   Fig 2: Identifying Clinch Points Of Frame

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.
   Fig 3: Identifying Frame Clinch Points

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.
3. Heat up connection areas using a hot-air gun.

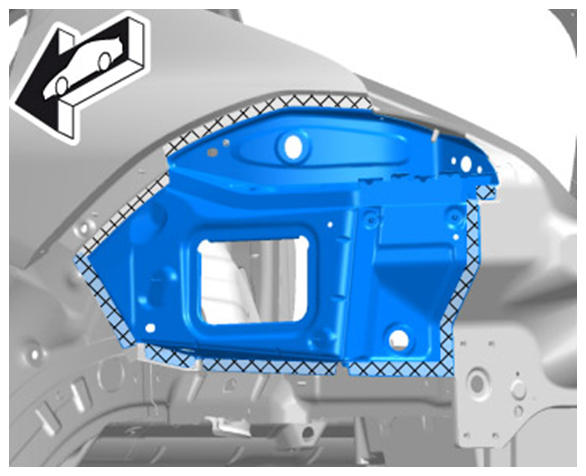

   Fig 4: Frame For Light Component Location

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.
4. Remove frame for light.
