Removing Tunnel Cover

Information

• The number of fastening screws, fixing clips, plug connections, holders and trim panels can vary depending on equipment.
• The illustrations for removing and installing the drive mechanism are shown only on one equipment variant and may differ from the actual equipment variant.
• Some steps must be carried out automatically.
• Some of the repair illustrations show only one side of the vehicle.

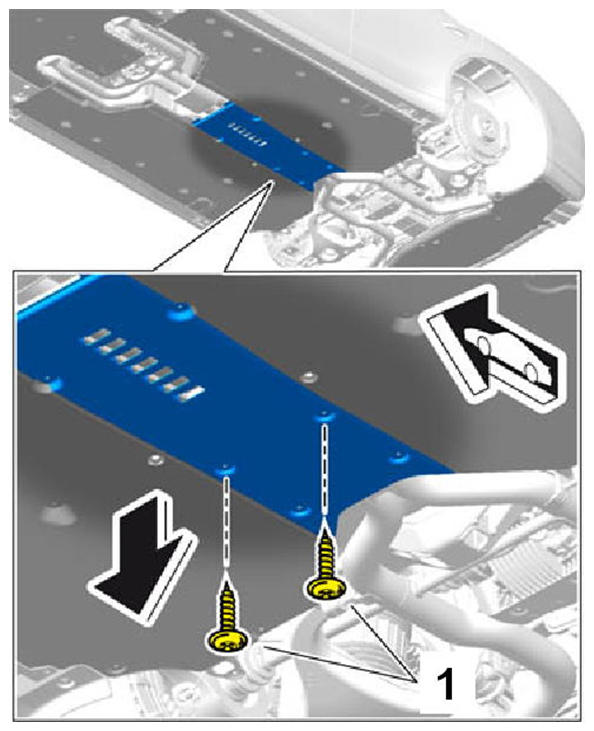

1. Unscrew and remove fastening screws -1-  .
   Fig 1: Removing Center Underbody Cover Fastening Screws

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

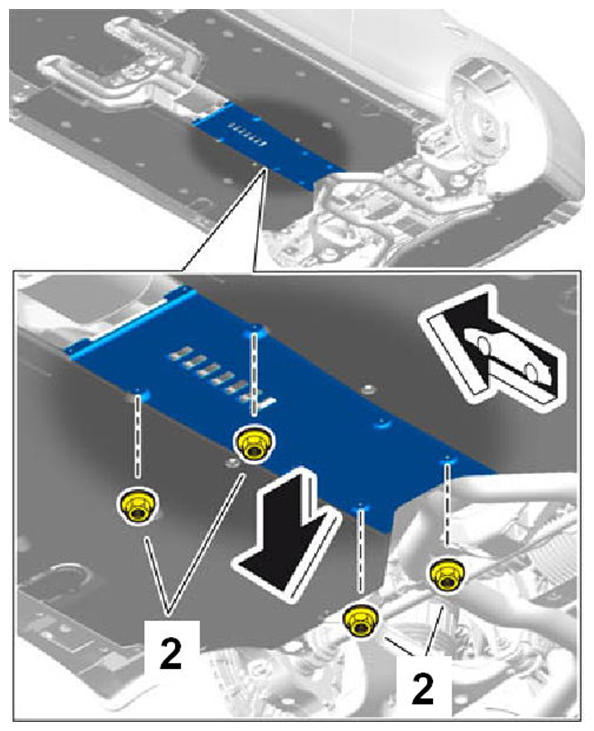

2. Screw off fastening nuts -2-  .
   Fig 2: Removing Center Underbody Cover Fastening Nuts

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

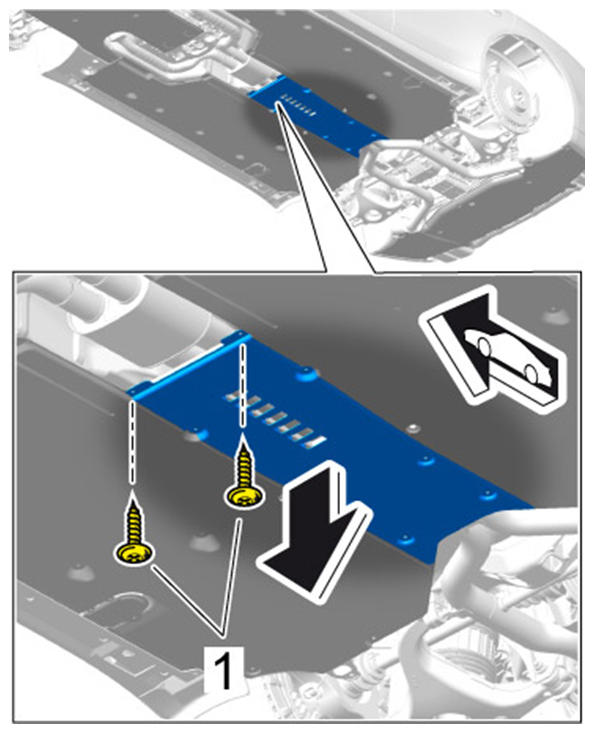

3. Unscrew and remove front fastening screws -1-  .
   Fig 3: Removing Front Fastening Screws

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.
4. Remove tunnel cover.
