Removing Right Cover

Information

• The number of fastening screws, fixing clips, plug connections, holders and trim panels can vary depending on equipment.
• The illustrations for removing and installing the drive mechanism are shown only on one equipment variant and may differ from the actual equipment variant.
• Some steps must be carried out automatically.
• Some of the repair illustrations show only one side of the vehicle.

Information

• Some of the repair illustrations show only one side of the vehicle.
• Naturally, some steps also have to be performed on the opposite side of the vehicle as well.
• These must be carried out as a mirror image of the steps shown for the front and rear.

1. Remove tunnel cover.

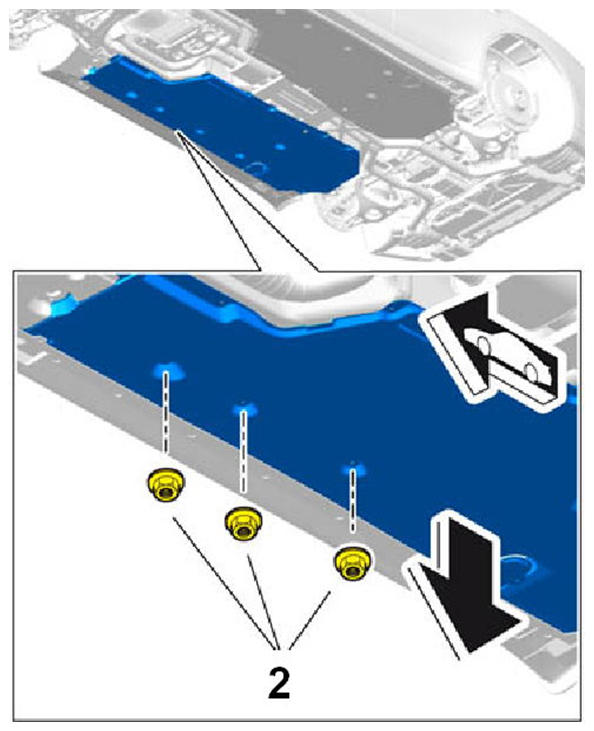

2. Screw off fastening nuts -2-  .
   Fig 1: Removing Tunnel Cover Fastening Nuts (1 Of 2)

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

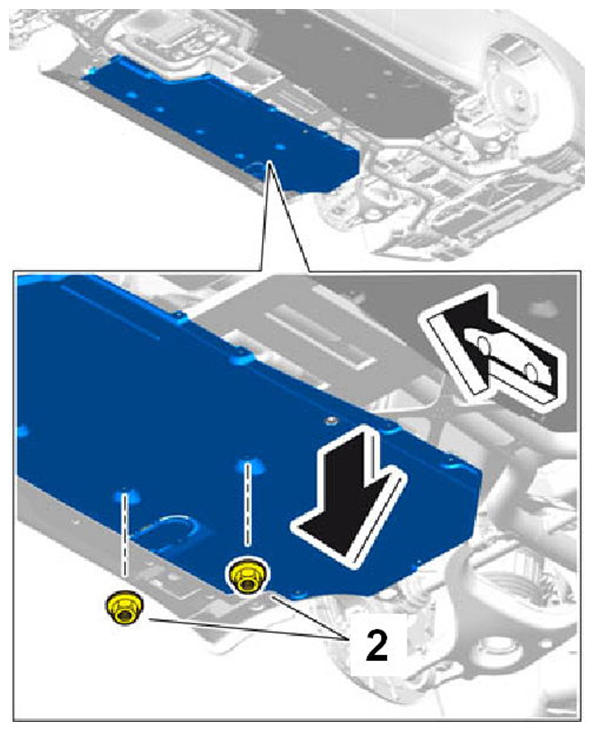

3. Screw off fastening nuts -2-  .
   Fig 2: Removing Tunnel Cover Fastening Nuts (2 Of 2)

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

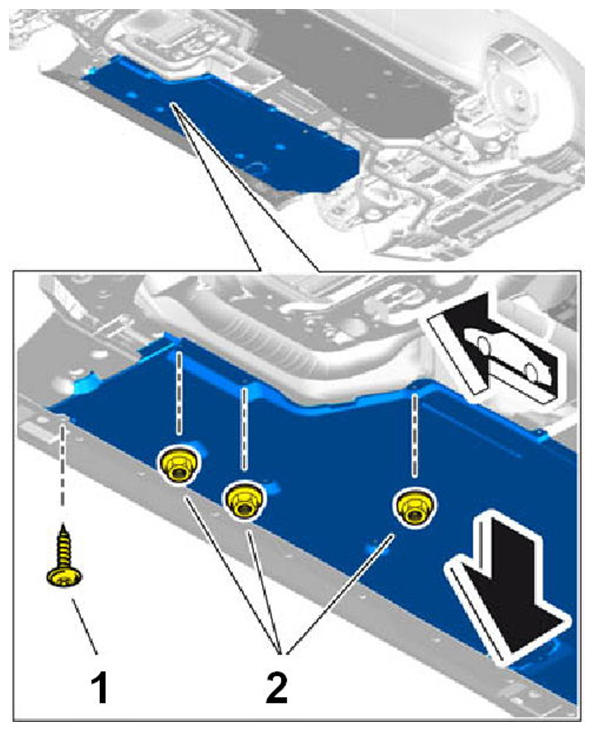

4. Unscrew and remove front fastening nuts -2-  and fastening screw -1-  at door sill.
   Fig 3: Removing Door Sill Fastening Nuts And Screw

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

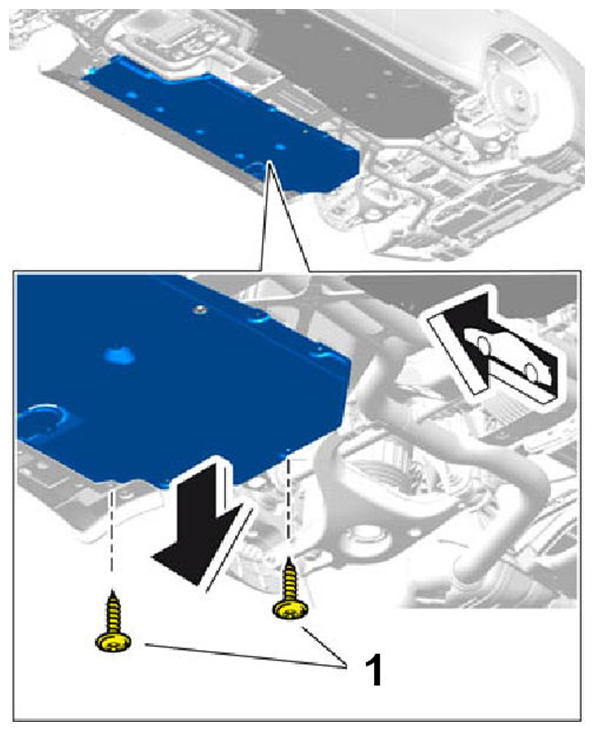

5. Unscrew and remove center fastening screw -1-  .

1. 2. Unscrew and remove rear fastening screws -1-  .
   Fig 4: Removing Door Sill Rear Fastening Screws

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.
2. 3. Remove cover.
