Tools And Materials
Information
- To mill the required shoulder, the tool with the designation Spot facer for Time-Sert thread repair set NR.122-2 must be used. The tool provided with the complete set supplied must not be used in this case!

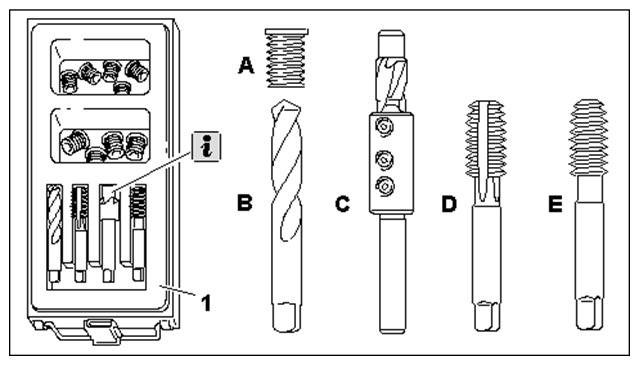

| Item | Tool |
|---|---|
| -1- | Time-Sert thread repair set Nr.122-1 |
| -A- | Threaded bush |
| -B- | Drill bit |
| -C- | Spot facer for Time-Sert thread repair set Nr.122-2 |
| -D- | Thread cutter |
| -E- | Screw-in tool |
