Technical Values

Location	Description	Type	Basic value	Tolerance 1
Fastening screws securing switch panel support to body		Tightening torque	23 Nm (17 ftlb.)	+/-2 Nm (+/- 1.5 ftlb.)

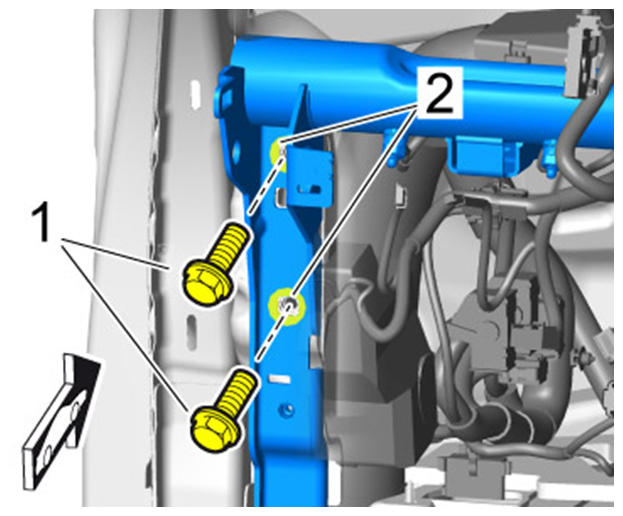

Courtesy of PORSCHE CARS NORTH AMERICA, INC. Screws securing support to body
Fastening screws securing switch panel support to window frame		Tightening torque	23 Nm (17 ftlb.)	+/-2 Nm (+/- 1.5 ftlb.)

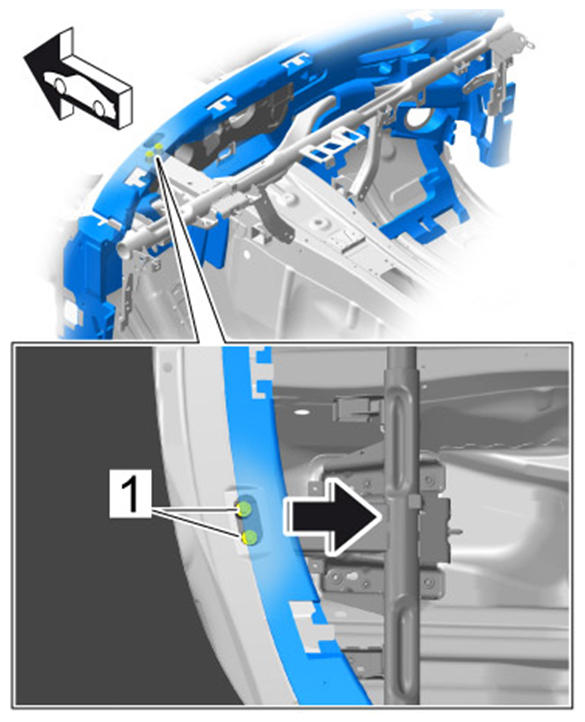

Courtesy of PORSCHE CARS NORTH AMERICA, INC. Screws to bulkhead sound absorber
Fastening nuts securing switch panel bracket to heater box		Tightening torque	8 Nm

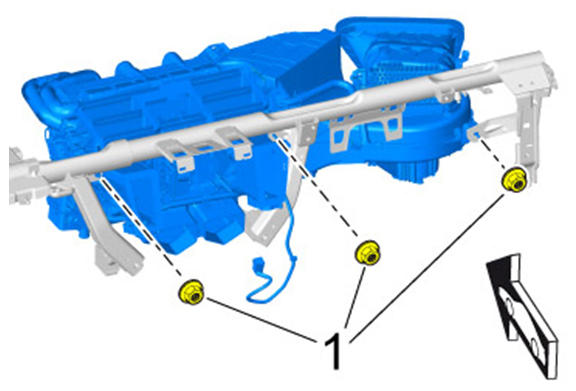

Courtesy of PORSCHE CARS NORTH AMERICA, INC. Fastening nuts for air-conditioning unit support
Fastening screw securing center tunnel holder to center tunnel	Item 1	Tightening torque	23 Nm (17 ftlb.)	+/-2 Nm (+/- 1.5 ftlb.)

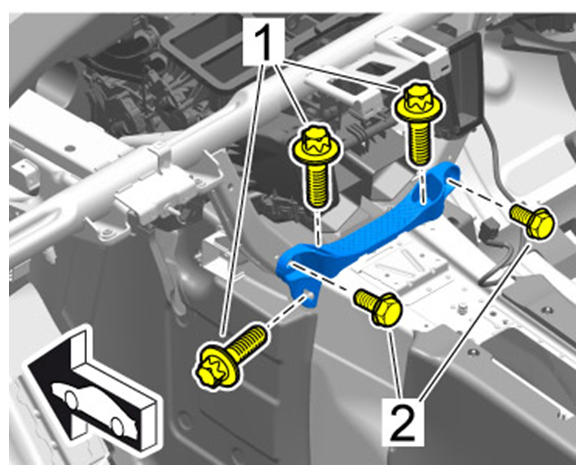

Courtesy of PORSCHE CARS NORTH AMERICA, INC. Center tunnel holder
Fastening screws securing center tunnel holder to switch panel support	Item 2	Tightening torque	4.6 Nm
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Center tunnel holder
Fastening nut securing ground cable to switch panel support		Tightening torque	8.4 Nm

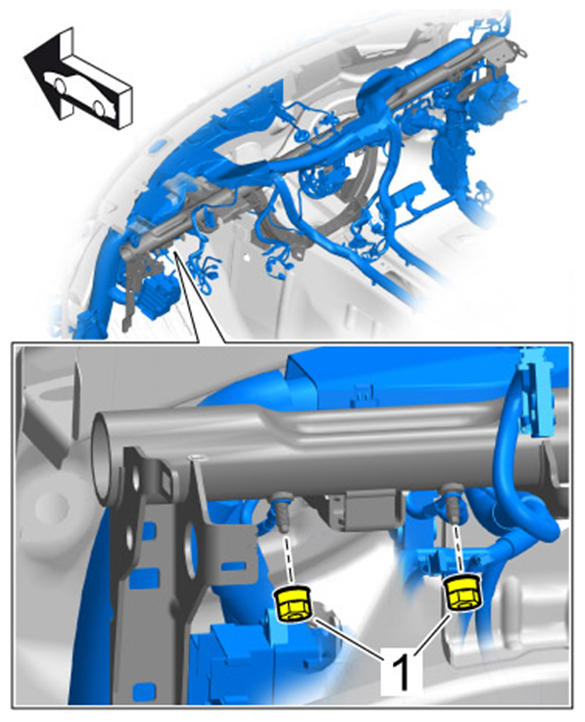

Courtesy of PORSCHE CARS NORTH AMERICA, INC. Installing/removing ground pin
Fastening nut securing ground cable to switch panel support		Tightening torque	8.4 Nm
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Installing/removing ground pin
Fastening screw securing cable duct to switch panel support		Tightening torque	3.2 Nm

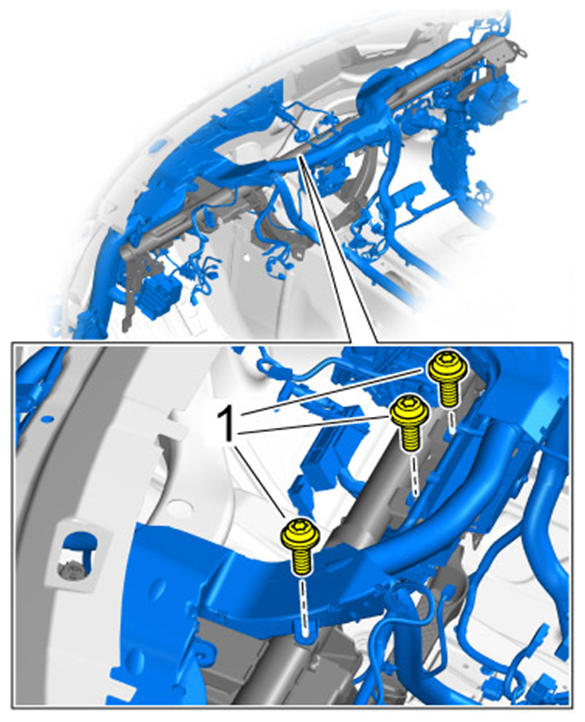

Courtesy of PORSCHE CARS NORTH AMERICA, INC. Screw off wiring harness from switch panel support
