Removing Side Member Reinforcement

Remove A-pillar reinforcement. → 513855 REPLACING A-PILLAR REINFORCEMENT
Remove B-pillar reinforcement. → 514255 REPLACING B-PILLAR REINFORCEMENT
Information

The insulating mat will be damaged irreparably during removal and must be replaced.

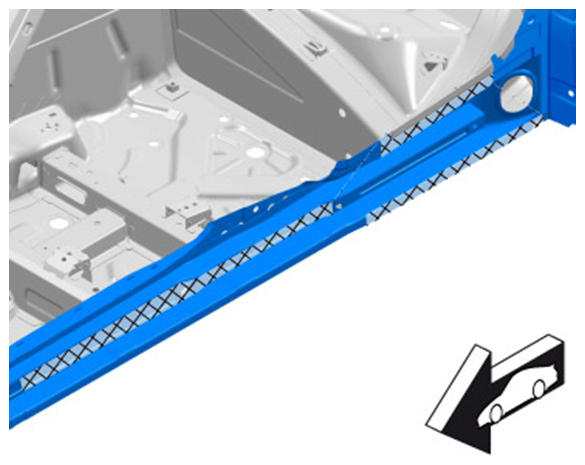

Heat up insulating mat with a hot-air gun and remove it.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

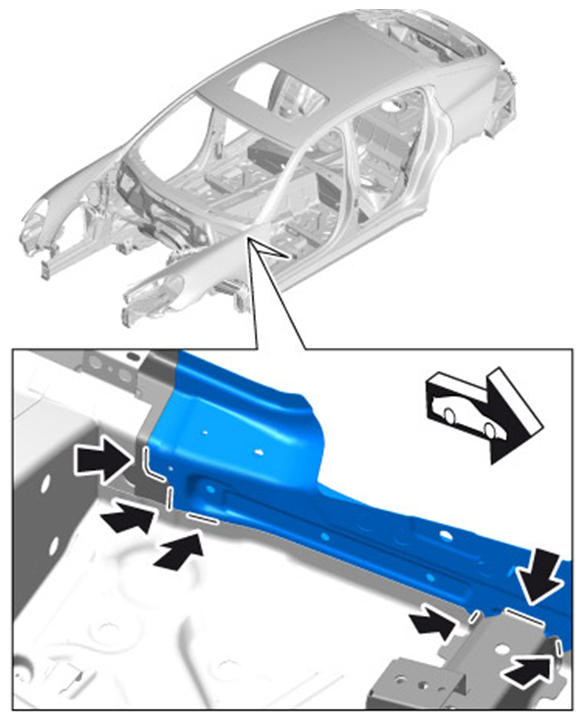

Grind down MIG seams -arrows- .

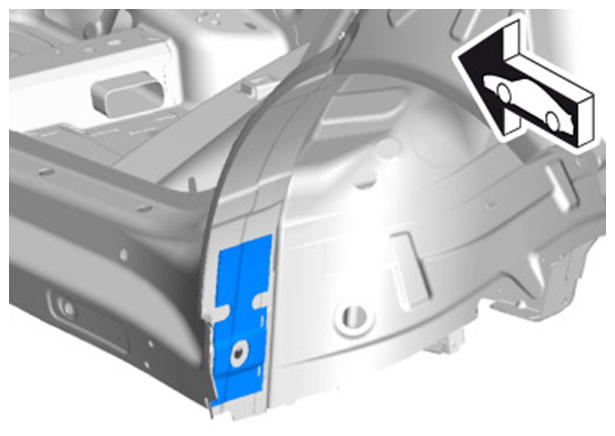

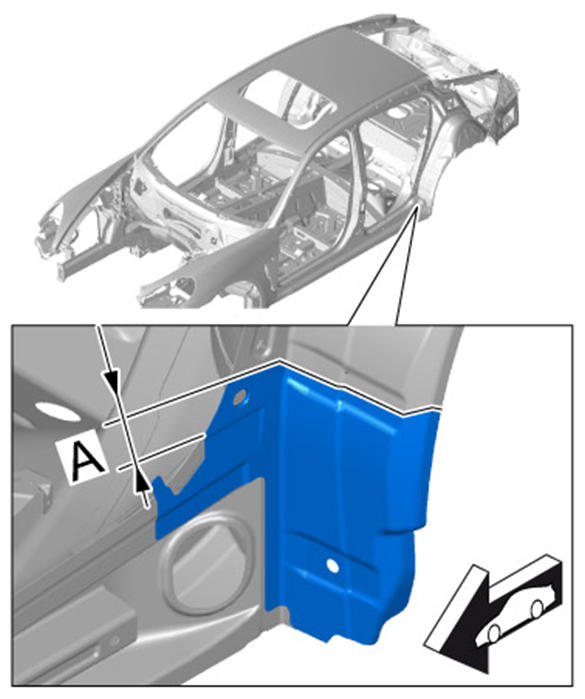

Fig 1: Side Member Reinforcement Component Location
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

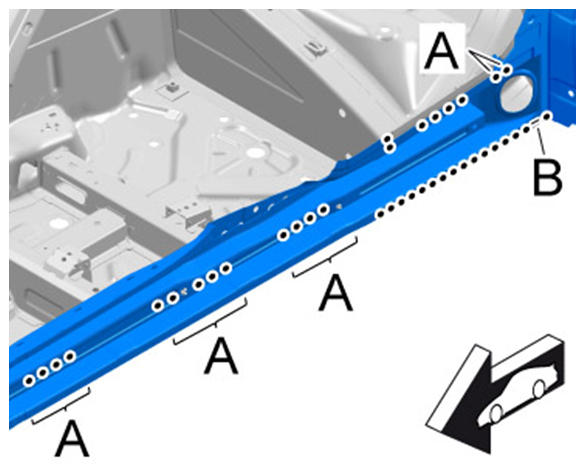

Fig 2: Removing Side Member Reinforcement
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

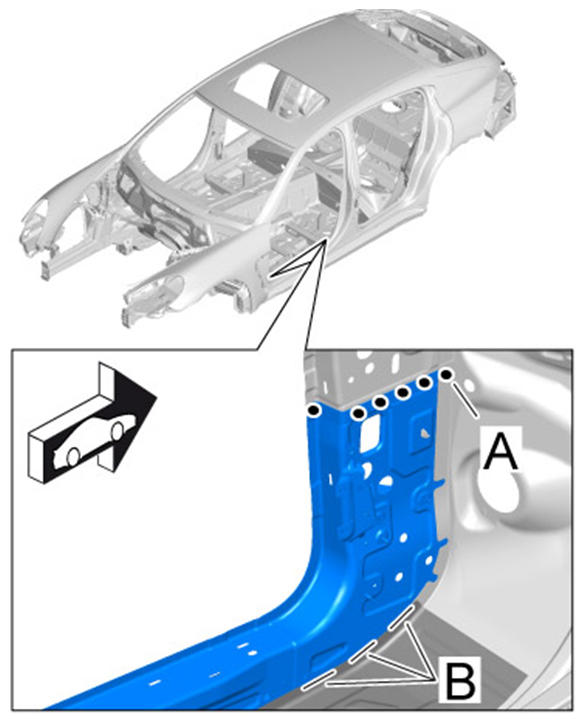

Grind down MIG seams -B- .

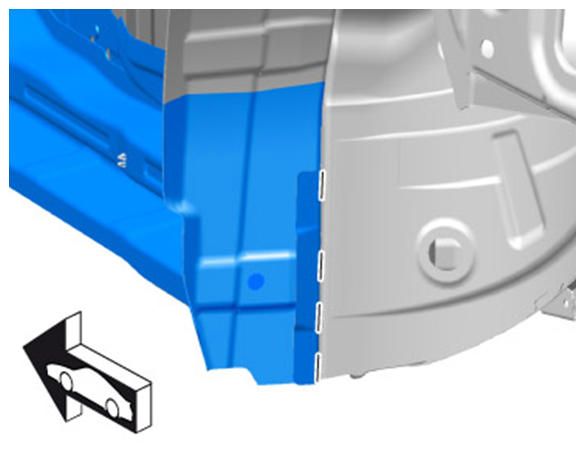

Fig 3: Removing Side Member Reinforcement
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Information

Drill out spotwelds A through two plate thicknesses.
Drill out spotwelds using spotweld drill Nr.129 .

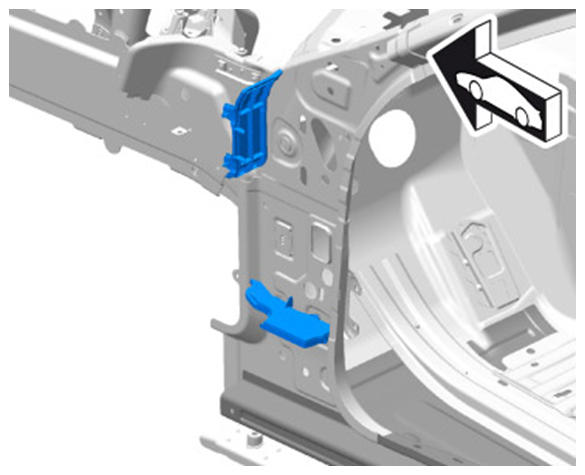

Heat up sealing elements with a hot-air gun and remove them.

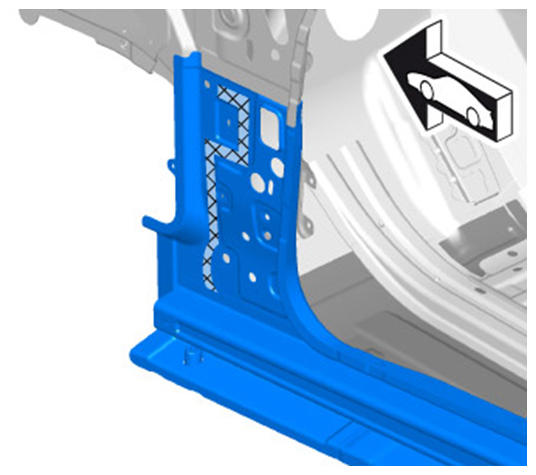

Fig 4: Removing Sealing Elements
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Information

Drill out spotwelds A through two plate thicknesses.
Drill out spotwelds using spotweld drill Nr.129 .

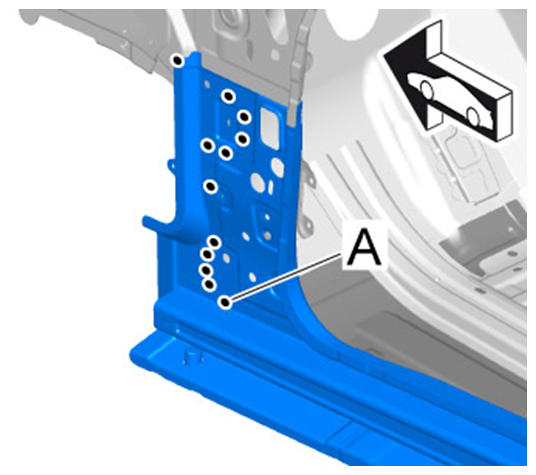

Fig 5: Removing Inner A-Pillar Panel
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Information

Drill out spotwelds A through two plate thicknesses.
Drill out spotwelds using spotweld drill Nr.129 .

Fig 6: Removing Side Member Reinforcement
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Grind down MIG seam -B- .
Mark and make the required cut. → Distance: 30 mm

Fig 7: Removing Side Member Reinforcement
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

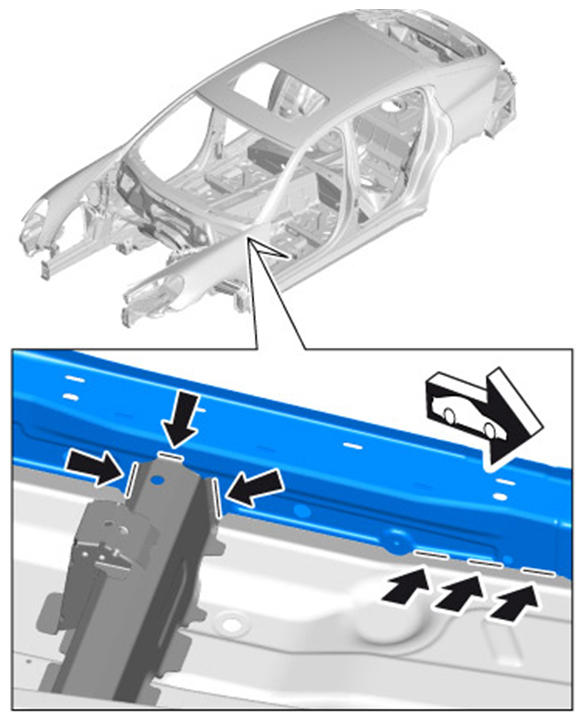

Grind down MIG seams.

Fig 8: Removing Side Member Reinforcement
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Heat up connection areas using a hot-air gun.

Fig 9: Removing Side Member Reinforcement (1 Of 2)
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Fig 10: Removing Side Member Reinforcement (2 Of 2)
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Remove side member reinforcement and inner panel and (outer) rear wheel housing section.
