Removing Front Roof Pillar At The Top

Information

Make a rough cut through all plates.

1. 2.1. Make a rough cut on the left and right side.

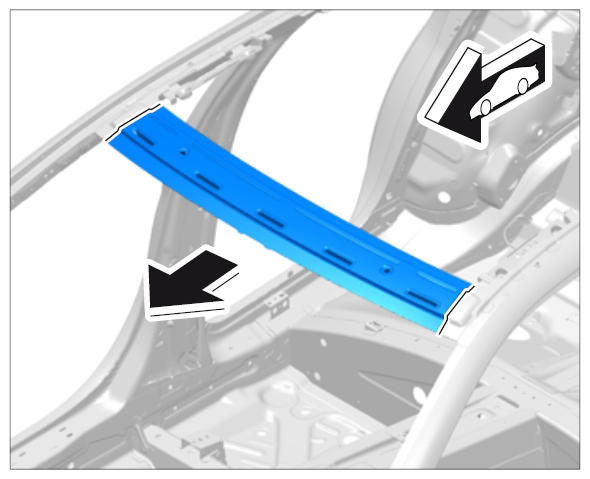

2. 2.2. Remove front roof pillar at the top, which you just cut out -arrow-  .
   Fig 1: Front Roof Pillar At Top Component Location

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

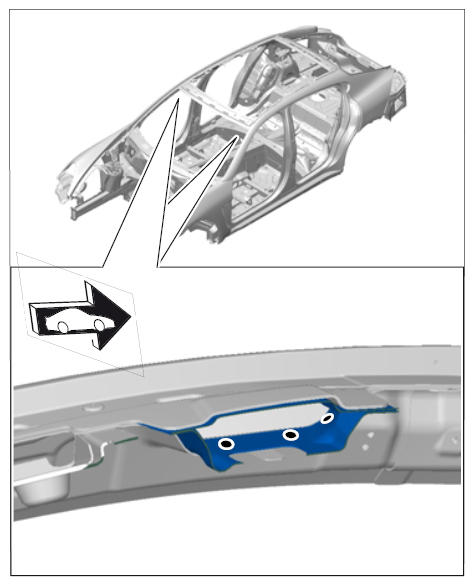

1. 3.1. Mill off spotwelds using a spherical cutter  .
   Fig 2: Removing Pieces Of Front Roof Pillar At Top

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Information

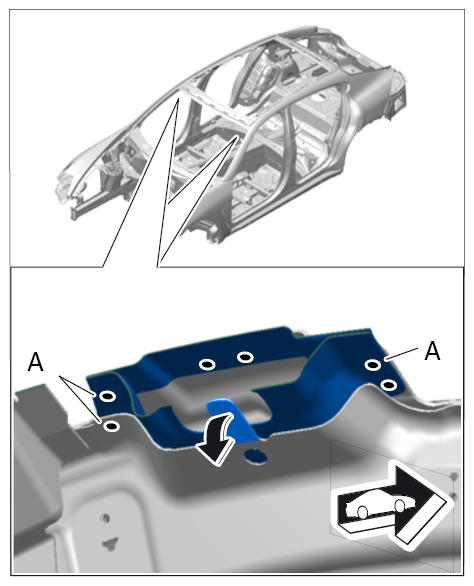

   Drill out spotwelds A  through two plate thicknesses.

2. 3.2. Drill out spotwelds using spotweld drill Nr.129  .
   Fig 3: Removing Pieces Of Front Roof Pillar At Top

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.
3. 3.3. Bend up sheetmetal bracket -arrow-  .

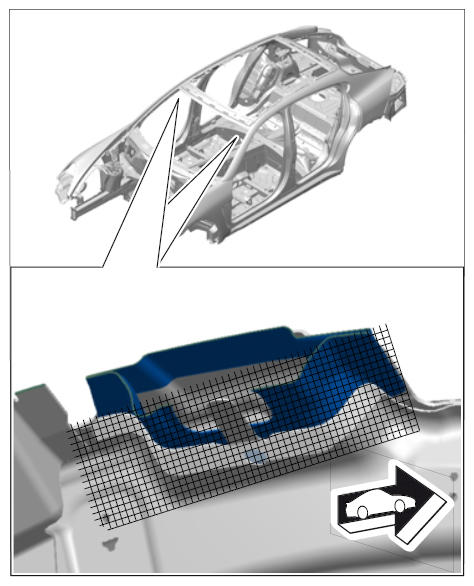

4. 3.4. Heat up connection areas using a hot-air gun.
   Fig 4: Heating Up Connection Areas

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.
5. 3.5. Remove remaining pieces of front roof pillar at the top.
