Preparing Roof For Installation

  1. Prepare welding areas for installation.
  2. Prepare bonding areas for installation.

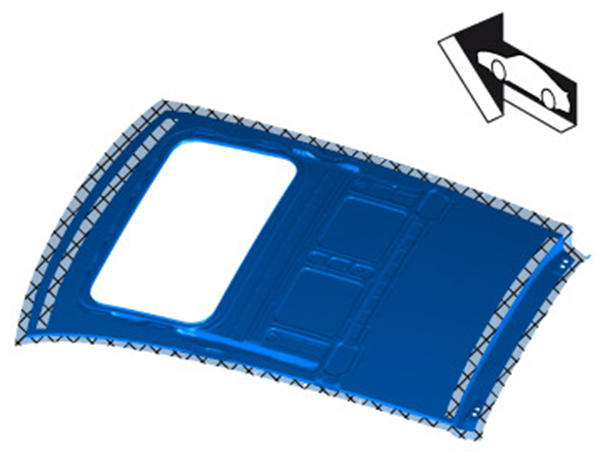

    Fig 1: Roof Component Location
    G09809329Courtesy of PORSCHE CARS NORTH AMERICA, INC.


  1. Prepare welding areas for installation.
  2. Prepare bonding areas for installation.
    Fig 1: Preparing Bonding Surfaces
    G09809352Courtesy of PORSCHE CARS NORTH AMERICA, INC.
