Preparing Connection Areas Of Body For Installing Roof

  1. Prepare welding areas -3-  for installation.
  2. Prepare bonding areas -1-  and -2-  for installation.
    1. -1-  - Cleaning bonding surfaces
    2. -2-  - Structural bonding: Preparing bonding areas
    3. -3-  - Preparing welding surfaces

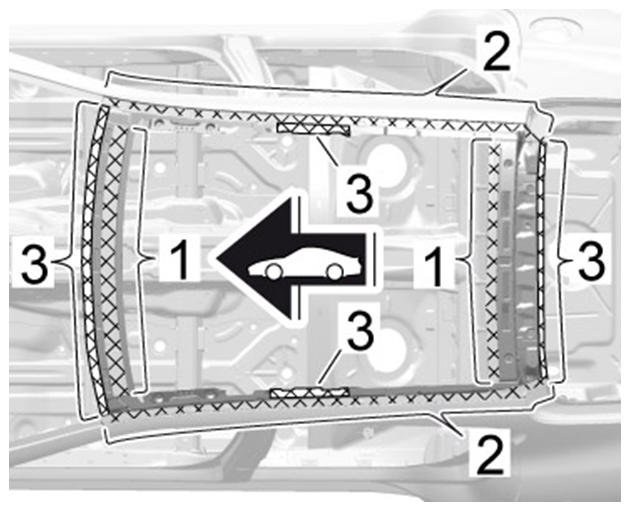

      Fig 1: Preparing Bonding Surfaces
      G09809330Courtesy of PORSCHE CARS NORTH AMERICA, INC.


  1. Prepare welding areas -3-  for installation.
  2. Prepare bonding areas -1-  and -2-  for installation.
    1. -1-  - Cleaning bonding surfaces
    2. -2-  - Structural bonding: Preparing bonding areas
    3. -3-  - Preparing welding surfaces
      Fig 1: Preparing Bonding Surfaces
      G09809353Courtesy of PORSCHE CARS NORTH AMERICA, INC.
