Installing Wire Harness For ParkAssist

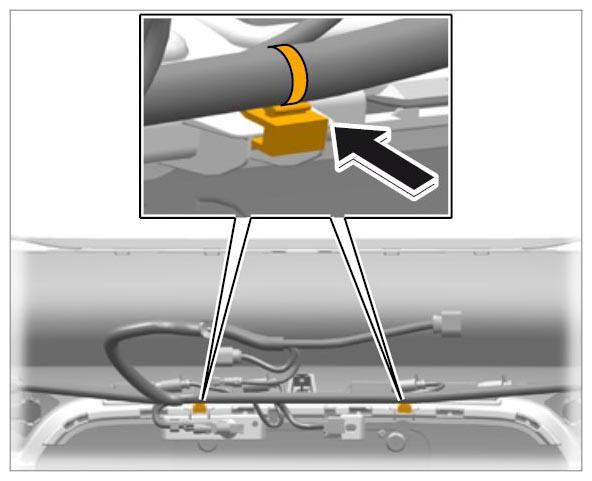

Position the wire harness and secure with the two inner fixing clips.

Fig 1: Fitting Inner Fixing Clips
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

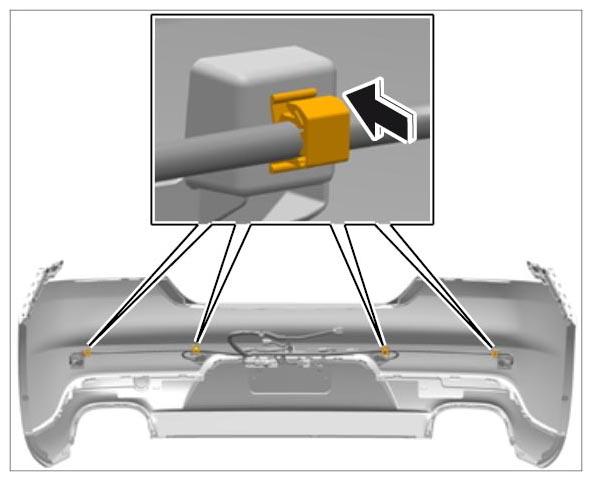

Secure wire harness for ParkAssist by closing the middle and outer clips.

Fig 2: Fastening Outer Clips
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

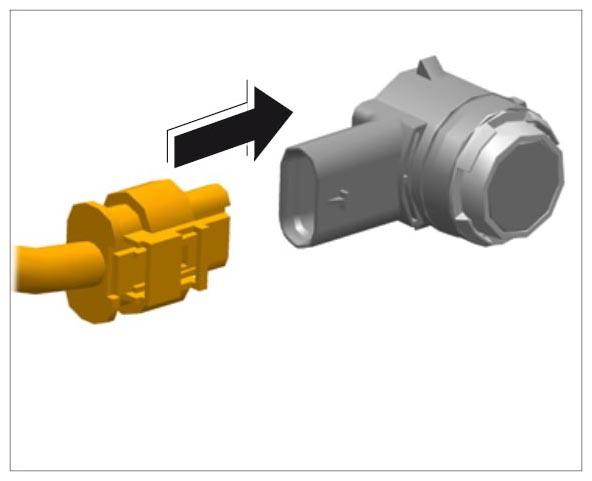

Plug connectors into the four ParkAssist sensors until the connectors engage securely.

Fig 3: Connecting Park Assist Sensors
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
