Removing Load-Through System

  1. Release and fold over load-through provision.
  2. Unscrew and remove bearing pin -1-  (-arrow A-  ).

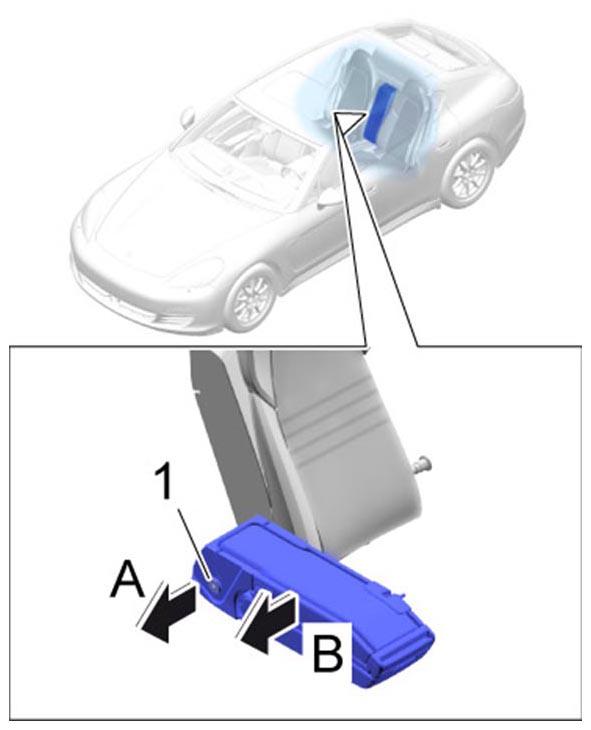

    Fig 1: Removing Bearing Pin
    G09813009Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  3. Remove load-through provision -arrow B-  .
