Installing Load-Through Provision

  1. Push load-through provision over the sleeve -arrow C-  .
  2. Tighten bearing pin -1-  (-arrow D-  ).

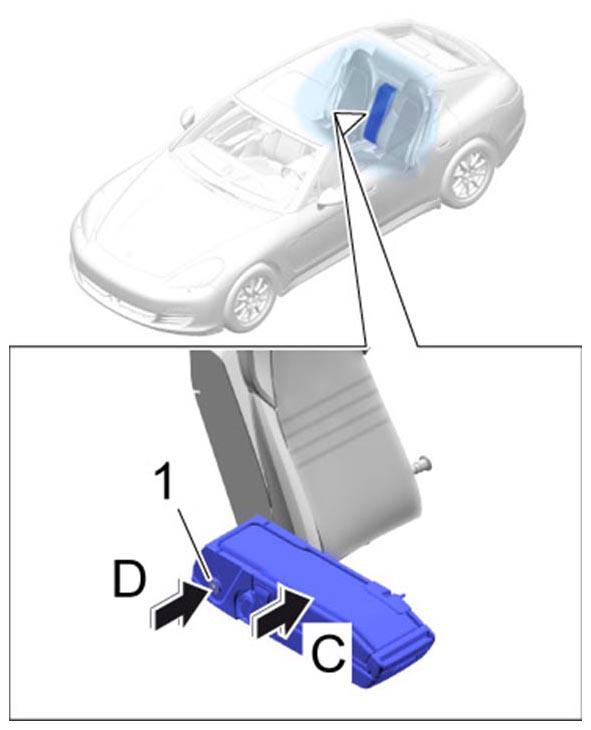

    Fig 1: Tightening Bearing Pin
    G09813010Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  3. Fold over and lock load-through provision.
