Installing Armrest With Cover (Rear)

  1. Push armrest into the guides until the bolts -2-  on the armrest at the left and right engage securely.

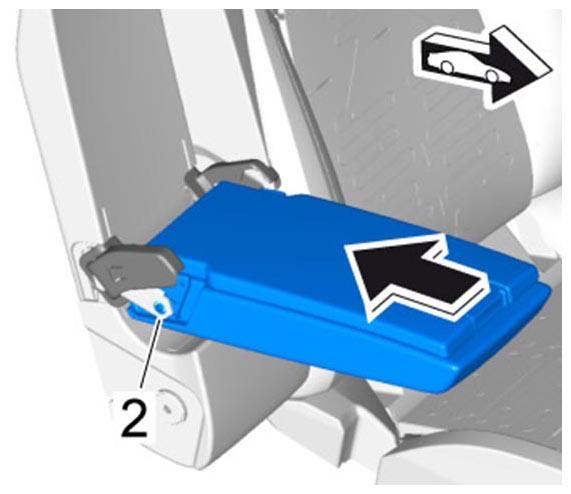

    Fig 1: Pushing Armrest
    G09813006Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  2. Turn covers at the left and right forward and clip in the locking lug -1-  .

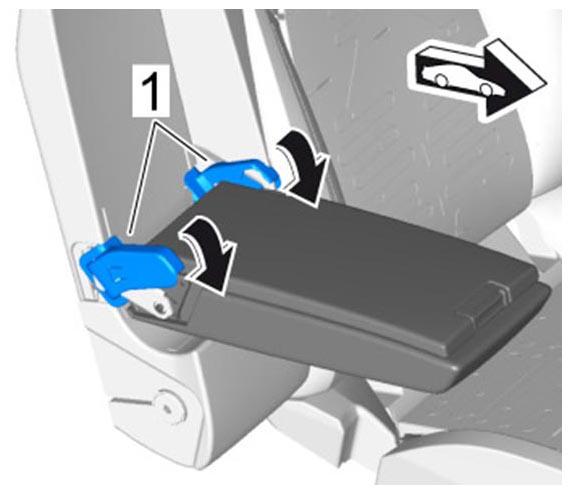

    Fig 2: Turning Plastic Cover
    G09813007Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  3. Fold up armrest.
  4. Move front seats into position.
