Installing Suction Fan For Rear Backrest

  1. Insert electric plug connection until the connector engages securely.

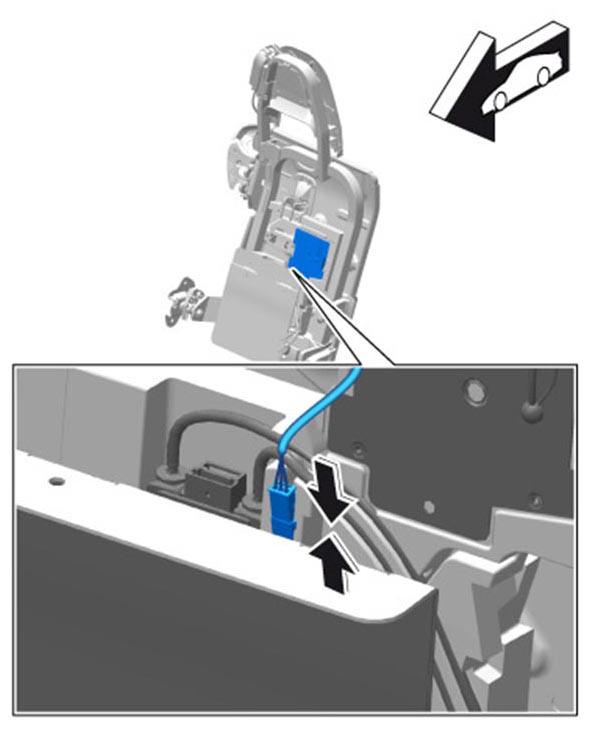

    Fig 1: Plugging Electric Plug Connection
    G09812964Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  2. Secure the cable on the backrest frame with a new tie-wrap -1-  .

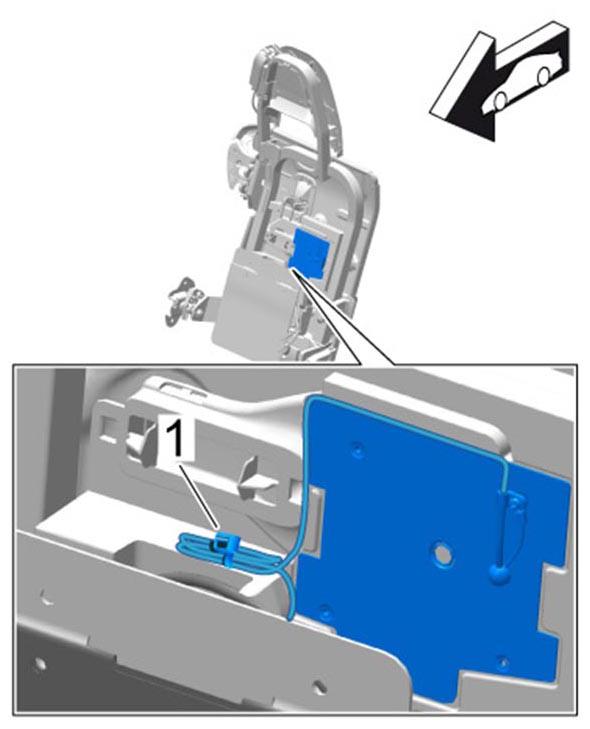

    Fig 2: Securing Cable On Backrest Frame
    G09812965Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  3. Engage the suction fan on the hard foam.

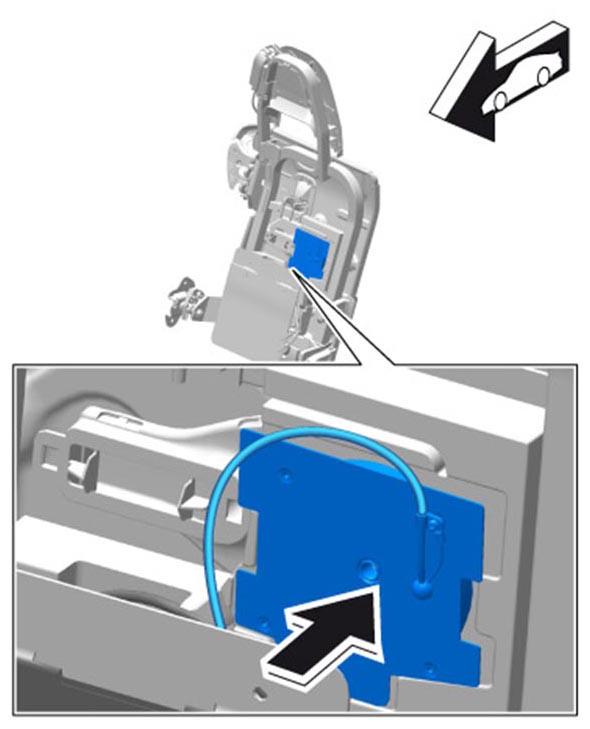

    Fig 3: Fitting Suction Fan
    G09812966Courtesy of PORSCHE CARS NORTH AMERICA, INC.
