Technical Values

Location Description Type Basic value Tolerance 1 Tolerance 2
Fastening screw for seat-surface extension, rear Item 2 Tightening torque 10 Nm (7.5 ftlb.) +/-1 Nm (+/-0.5 ftlb.)

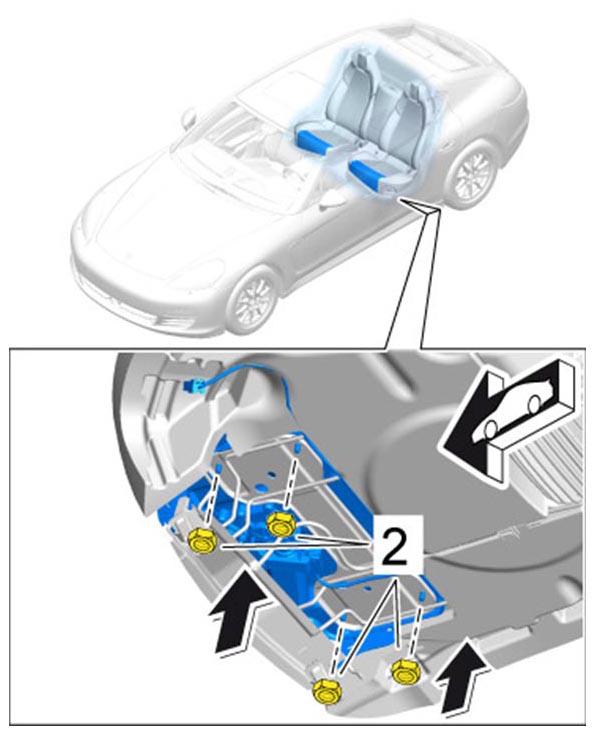

G09812901

Tightening fastening nuts
