Installing Rear Seat-Surface Extension

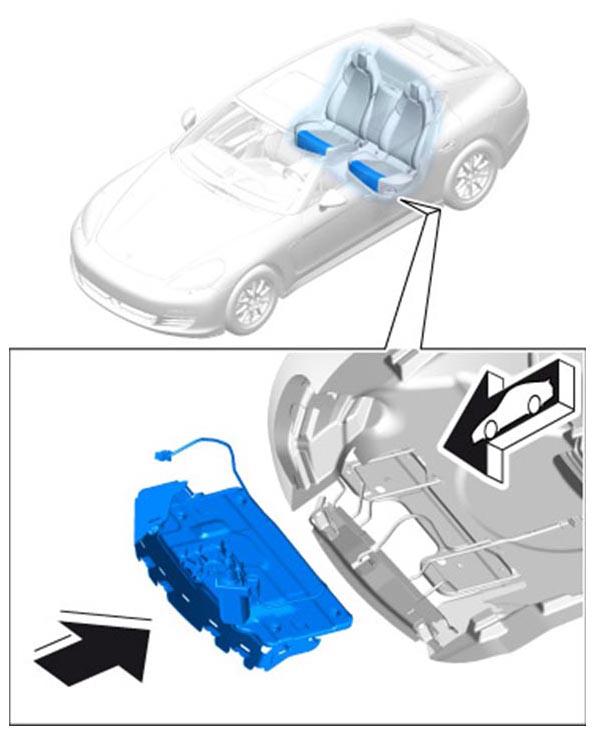

Push in and position seat-surface extension.

Fig 1: Positioning Seat-Surface Extension
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

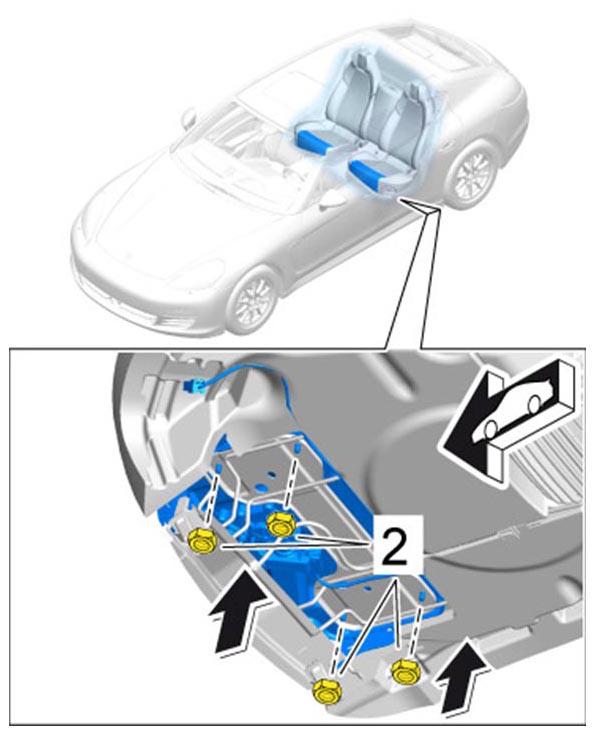

Tightening fastening nuts -2- . Tightening torque 10 Nm (7.5 ftlb.) +/-1 Nm (+/-0.5 ftlb.)

Fig 2: Tightening Fastening Nuts
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Plug in electric plug connection on the rear switch. → 727619 REMOVING AND INSTALLING SWITCH FOR REAR SEAT ADJUSTMENT

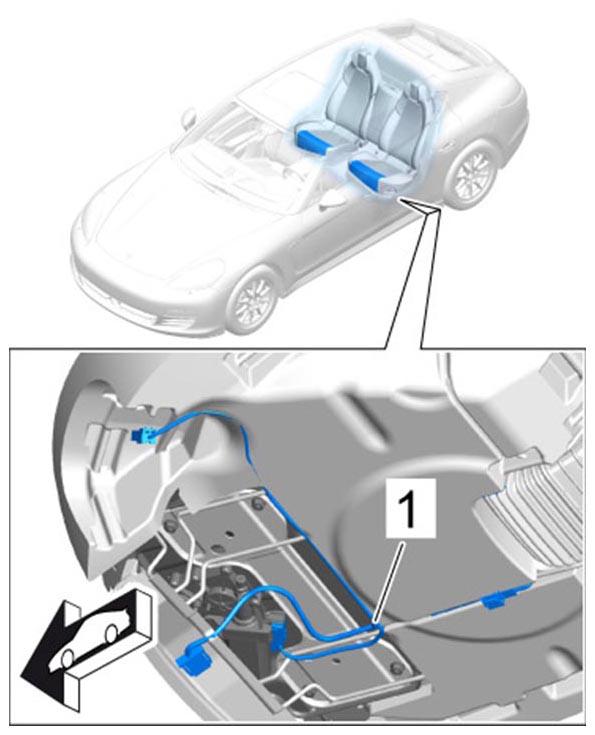

Replace the relevant tie wrap -1- and secure the cable.

Fig 3: Replacing Tie-Wrap
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
