Installing Heating Element For Front Seat

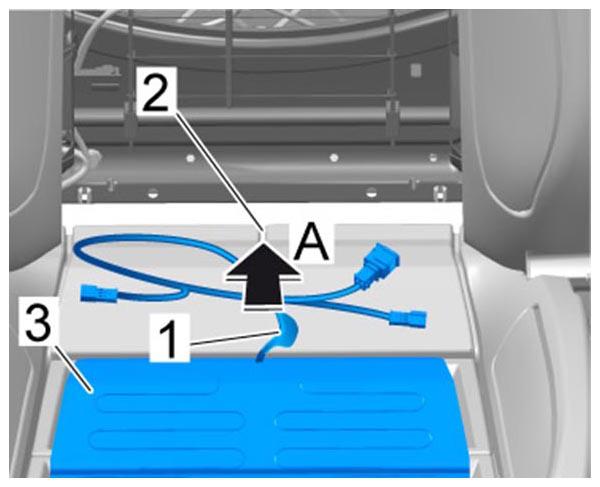

Route lines -1- for the heating pad -3- through the gaps in the seat cushion -2- towards the rear -A- .

Fig 1: Installing Front Seat Heating Lines
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

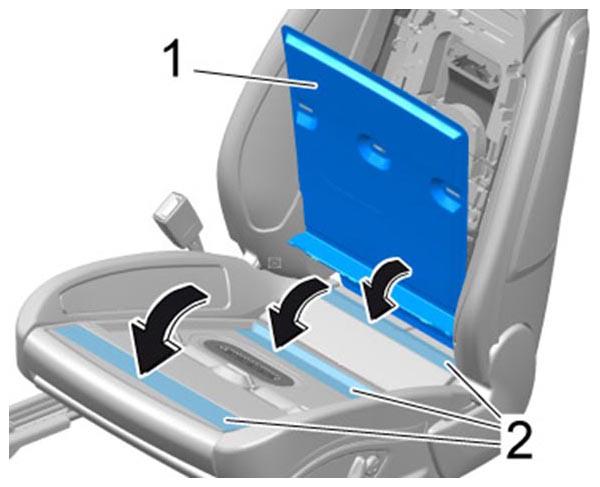

Affix new adhesive strips -2- on the padding using double-sided adhesive tape and secure the heating pad -1- .

Fig 2: Replacing Adhesive Strips
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
