Installing Cover For Front Backrest

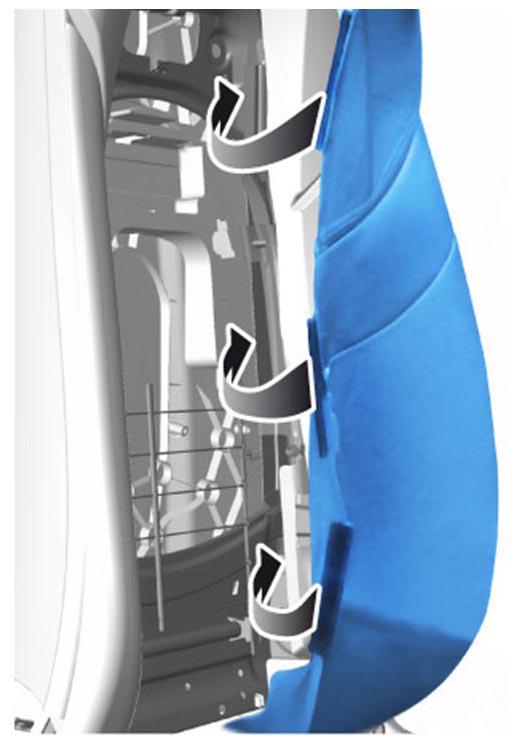

- Fit the cover from top to bottom -arrows-
and straighten it.
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
- Fit cover in the head area.
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

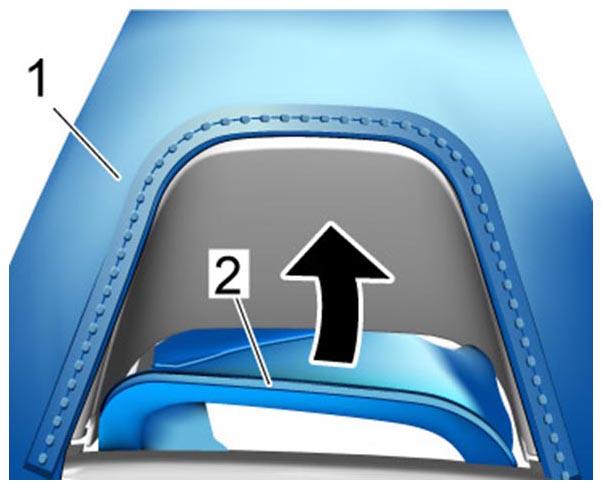

- 2.1. Guide the cover within the headrest towards the rear -arrow-
.
- 2.2. Fit the cover within the headrest -2-
.
- 2.3. Fit the cover in the outer head area -1-
.

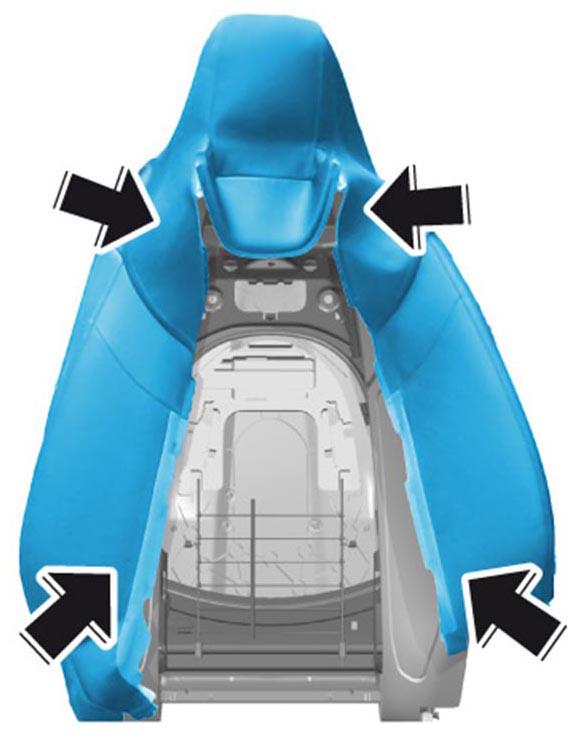

- Fit the cover on the outside at both sides -arrows-
.
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

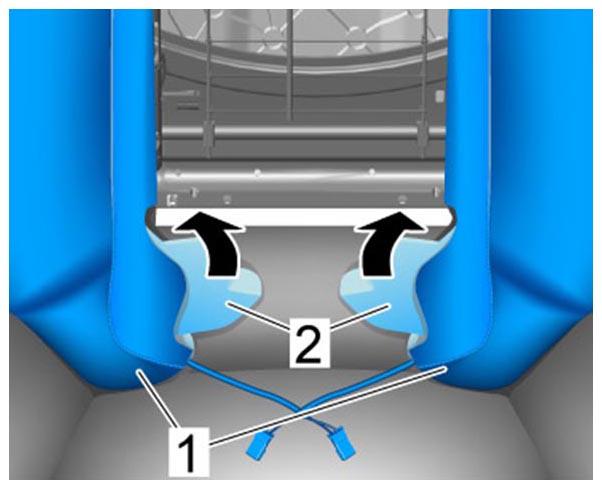

- Pull the cover in the lower part of the side bolsters -1-
around the cushion -2-
and position it towards the rear -arrows-
.
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

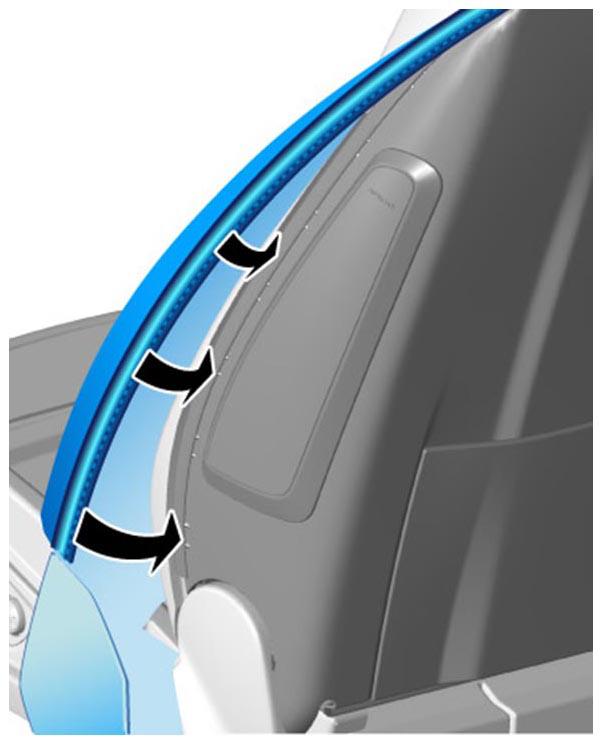

- Engage the cover on the inside all the way around -arrows-
.
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

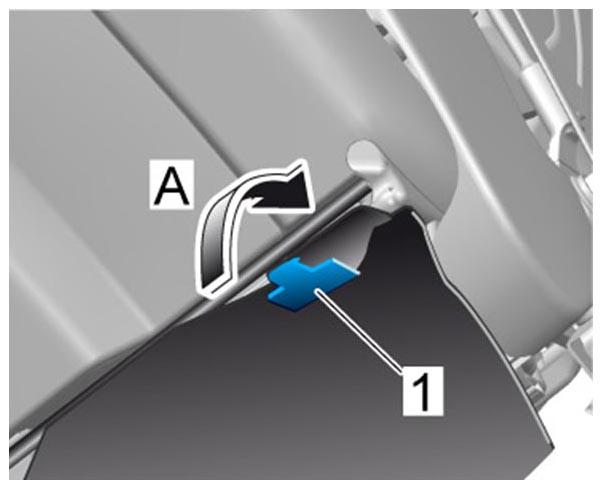

- Engage the hook -1-
for the cover at the rear on both sides -arrow A-
.
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
