Removing Padding For Front Backrest

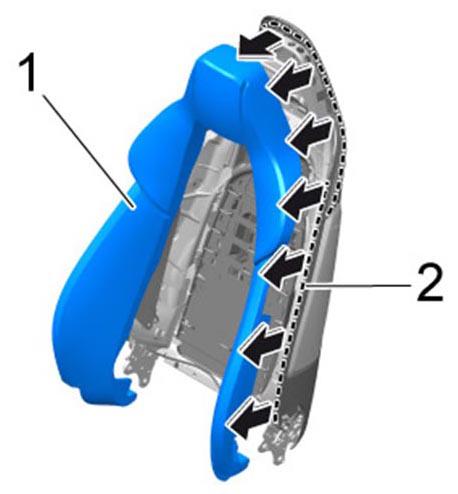

  1. Pull off the padding -1-  all around the bonding area -2-  by hand -arrows-  .
    Fig 1: Pulling Off Padding
    G09812835Courtesy of PORSCHE CARS NORTH AMERICA, INC.

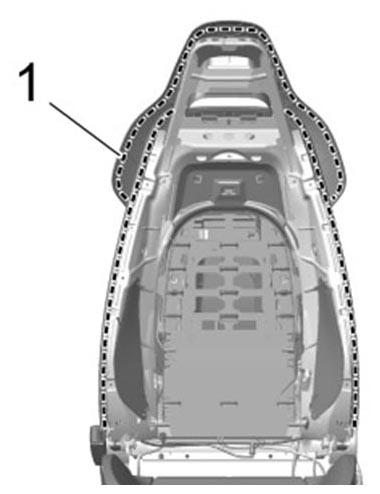

  2. Remove adhesive residues -1-  from the backrest frame.
    Fig 2: Removing Adhesive
    G09812836Courtesy of PORSCHE CARS NORTH AMERICA, INC.
