Removing Switch For Seat Adjustment

  1. Remove the four fastening screws -arrow-  for the seat adjustment switch.

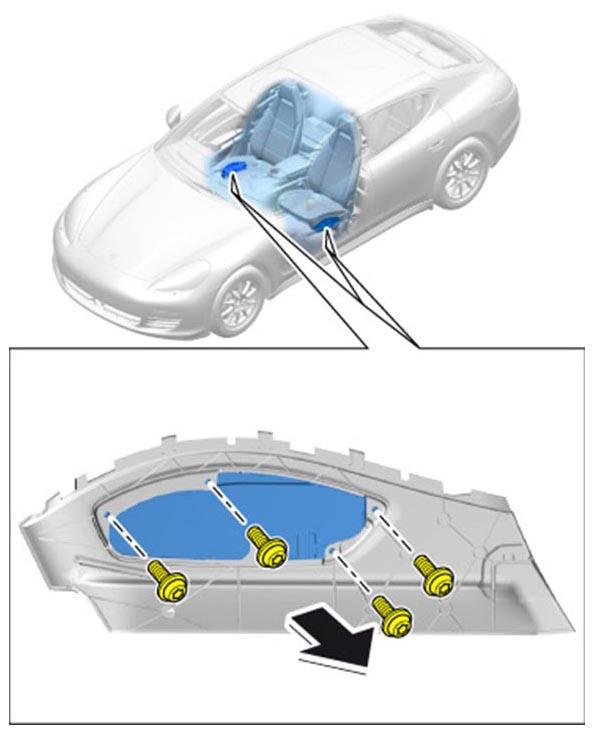

    Fig 1: Removing Seat Adjustment Switch Fastening Screws
    G09812717Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  2. Pull the seat adjustment switch forward out of the trim panel -arrow-  .

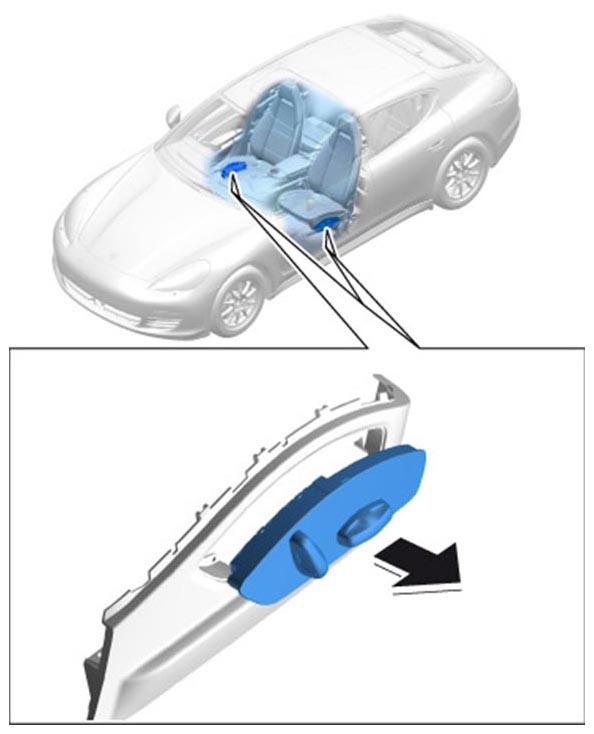

    Fig 2: Pulling Seat Adjustment Switch
    G09812718Courtesy of PORSCHE CARS NORTH AMERICA, INC.
