Installing Switch For Seat Adjustment

  1. Fit seat adjustment switch into the trim panel -arrow-  .

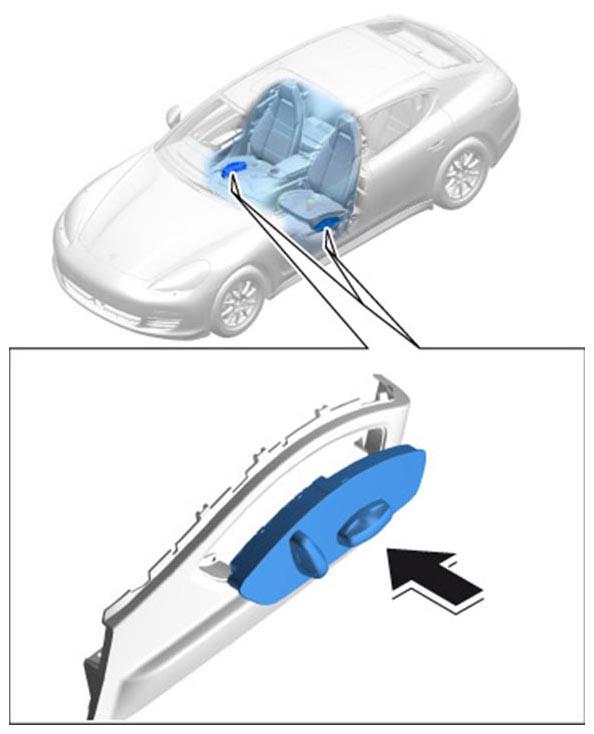

    Fig 1: Fitting Seat Adjustment Switch Into Trim Panel
    G09812719Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  2. Secure the seat adjustment switch with the four fastening screws -arrow-  .

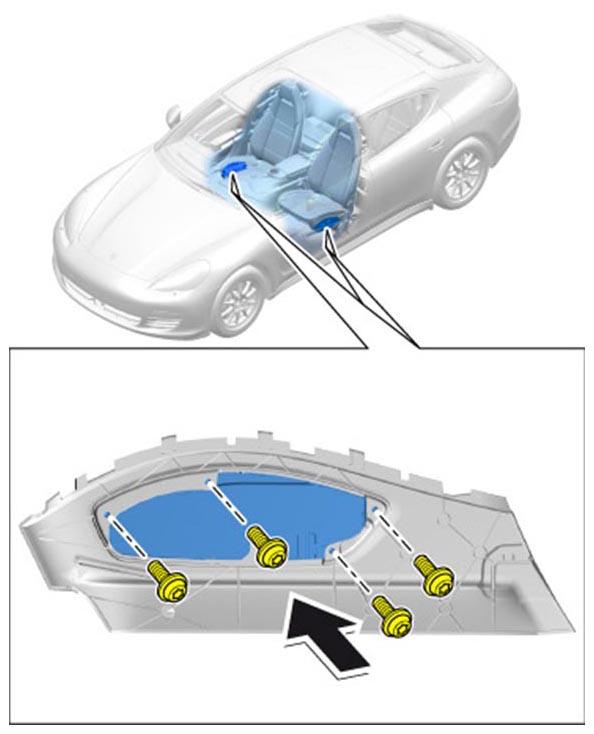

    Fig 2: Securing Seat Adjustment Switch
    G09812720Courtesy of PORSCHE CARS NORTH AMERICA, INC.
