Installing Switch For Rear Seat Adjustment

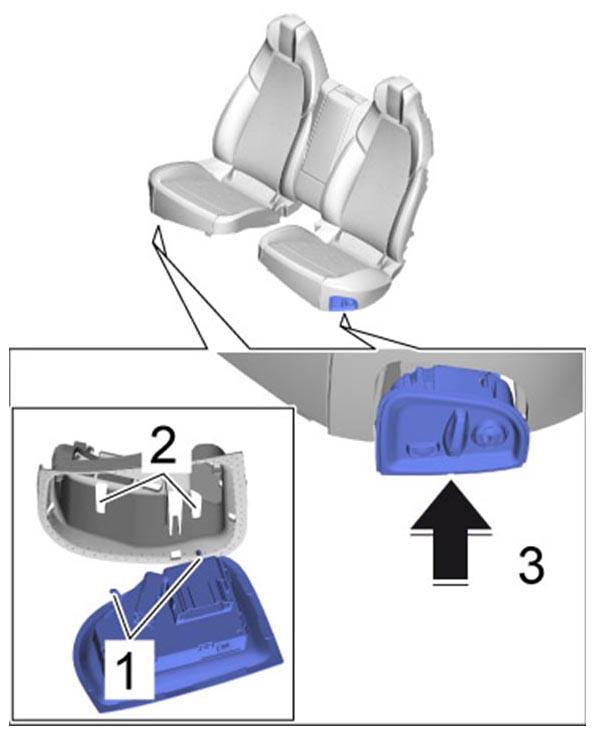

- Position the seat adjustment switch into the switch support from the outside.
- Hook the two locking lugs -1-
at the bottom into the openings -2-
on the cover of the switch support.
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

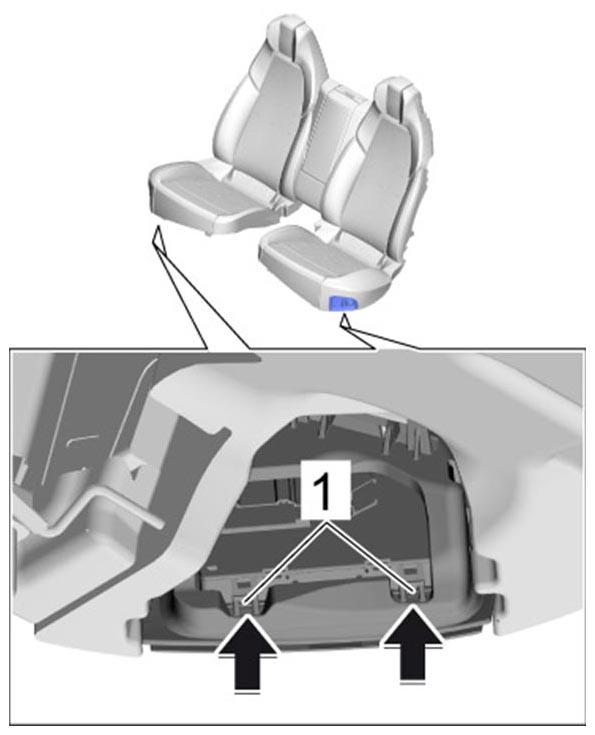

- Engage the seat adjustment switch into the two locking lugs -1-
at the top by pressing it.
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

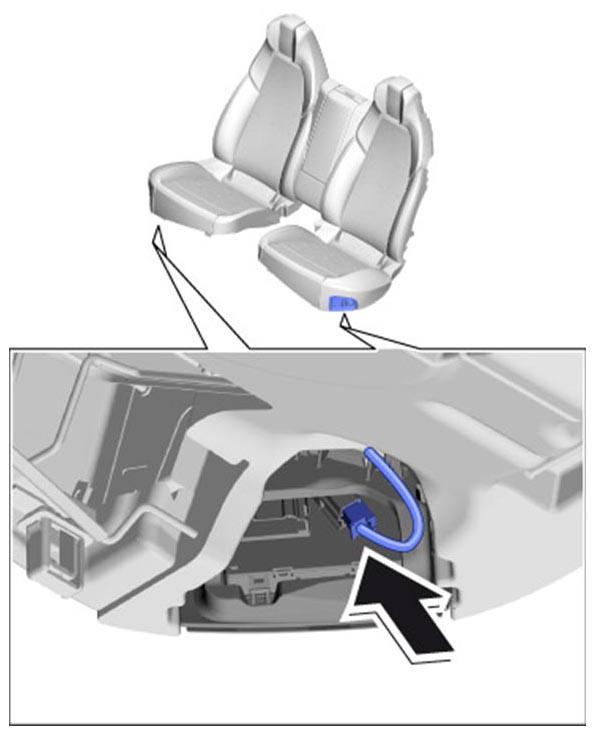

- Insert the electric plug connection until the connector engages securely.
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
