Removing Rear Backrest Mount (With Load-Through Provision)

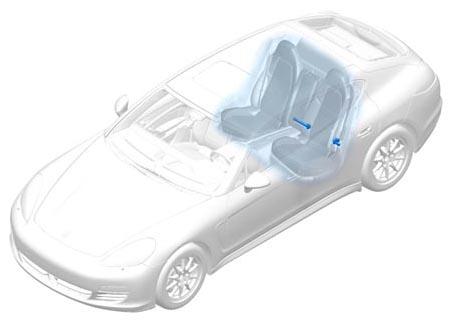

Fig 1: Identifying Installation Position Of Backrest Mount (With Load-Through Provision)

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

1. Use a suitable tool to secure the fastening nut -3-  and load-through sleeve -4-  to prevent them from turning as well.
2. Unscrew and remove inner -1 -  and outer bearing pins -2 -  with the bearing sleeves.
3. Remove inner -1 -  and outer mount -2-  .

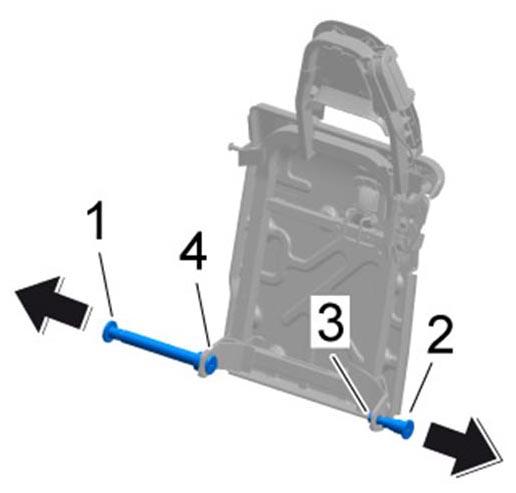

   Fig 2: Removing Inner And Outer Mount

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.
