Removing Backrest Mount (With Armrest)

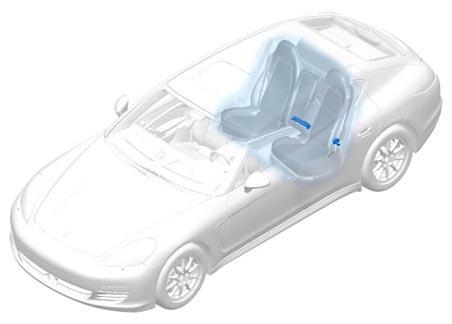

Fig 1: Identifying Installation Position Of Backrest Mount (With Armrest)
G09812692Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  1. Use a suitable tool to secure the fastening nut -3-  to prevent it from turning as well.
  2. Unscrew and remove inner -1-  and outer bearing pins -2-  with the bearing sleeves.
  3. Remove inner -1-  and outer mount -2-  .

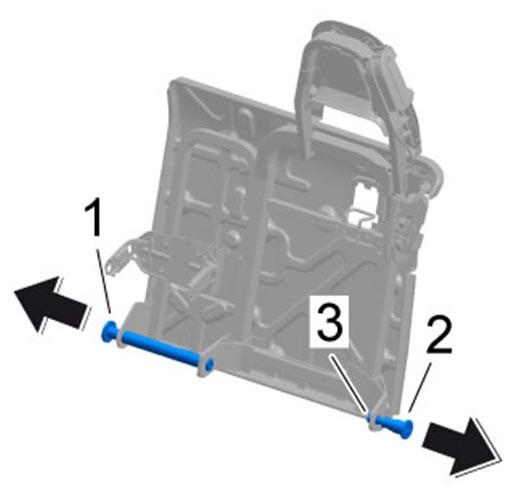

    Fig 2: Removing Inner And Outer Mount
    G09812693Courtesy of PORSCHE CARS NORTH AMERICA, INC.
