Removing Mount For Rear Backrest: Notes

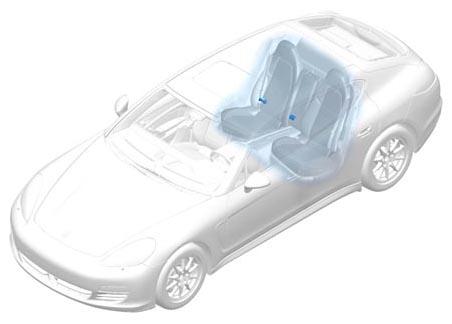

Fig 1: Identifying Installation Position Of Backrest Mount

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Use a suitable tool to secure the fastening nuts -3- to prevent them from turning as well.
Unscrew and remove inner -1- and outer bearing pins -2- with the bearing sleeves.
Remove inner -1- and outer mount -2- .

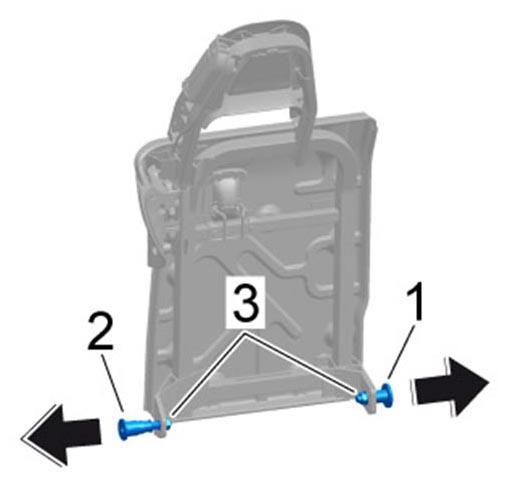

Fig 2: Removing Inner And Outer Mount
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
