Installing Backrest Mount (With Armrest)

  1. Position inner and outer bearing pins with the bearing sleeves.
  2. Use a suitable tool to secure the fastening nut -3 -  to prevent it from turning as well.
  3. Screw in bearing pins -1 and 2-  and tighten to the specified tightening torque. Tightening torque 50 Nm (37 ftlb.) +/-5 Nm (+/-3.5 ftlb.)

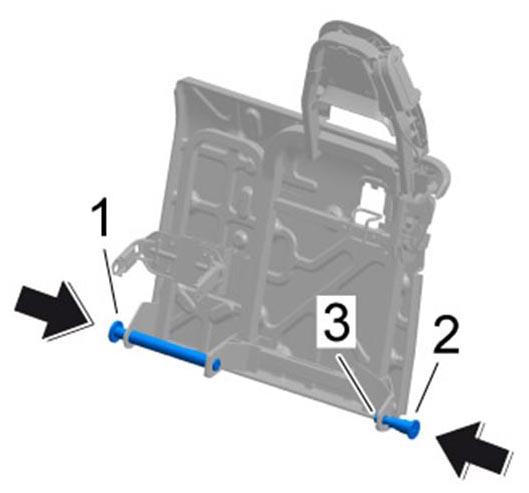

    Fig 1: Tightening Bearing Pins
    G09812697Courtesy of PORSCHE CARS NORTH AMERICA, INC.
