Technical Values

Location Description Type Basic value Tolerance 1 Tolerance 2
Locking mechanism to backrest frame   Tightening torque 3.2 Nm (2 ftlb.)
G09812676G09812677
G09812676G09812677

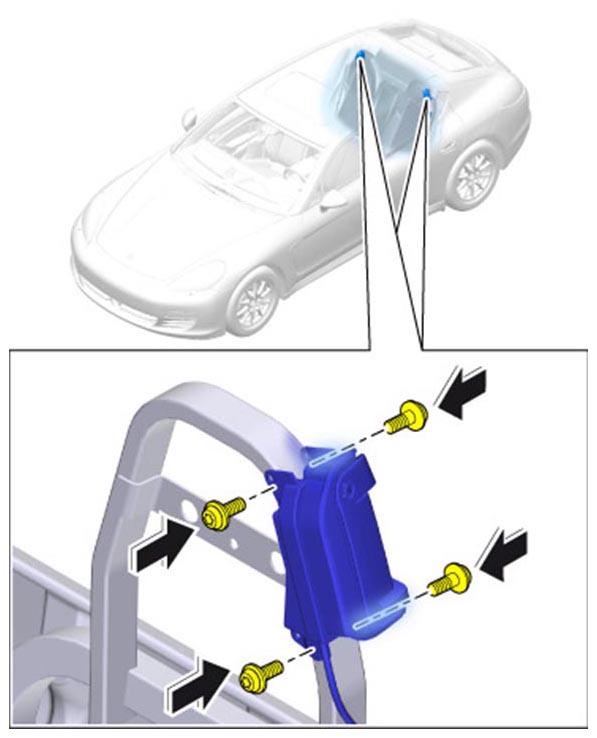

Tightening fastening screws on locking mechanism

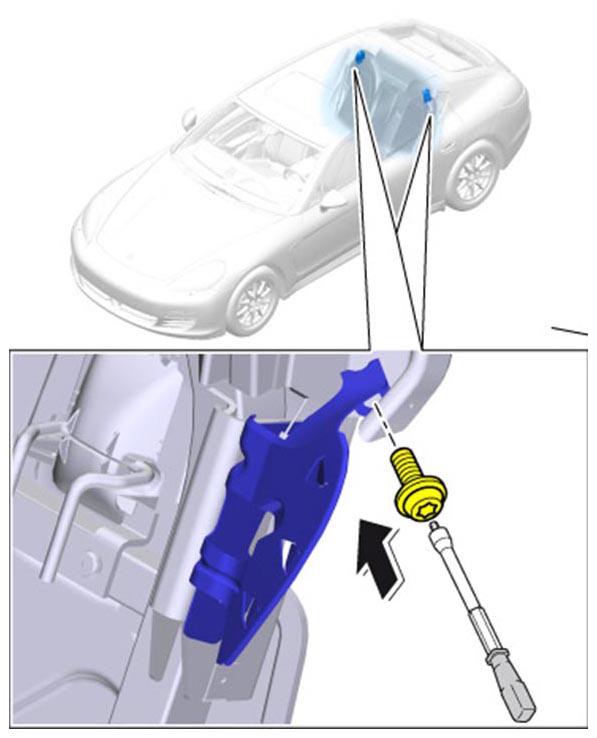

Locking mechanism to backrest frame   Tightening torque 5 Nm (3.5 ftlb.)

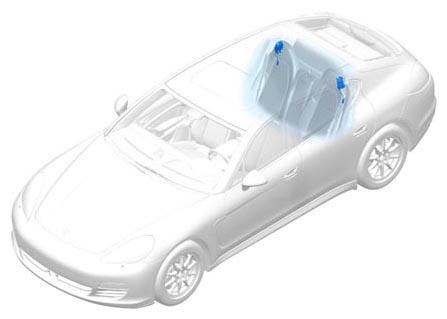

G09812678

Installing retaining bracket
