Installing Rear Lumbar Support

Insert valve -3- into the hard foam.
Plug in electric plug connection.

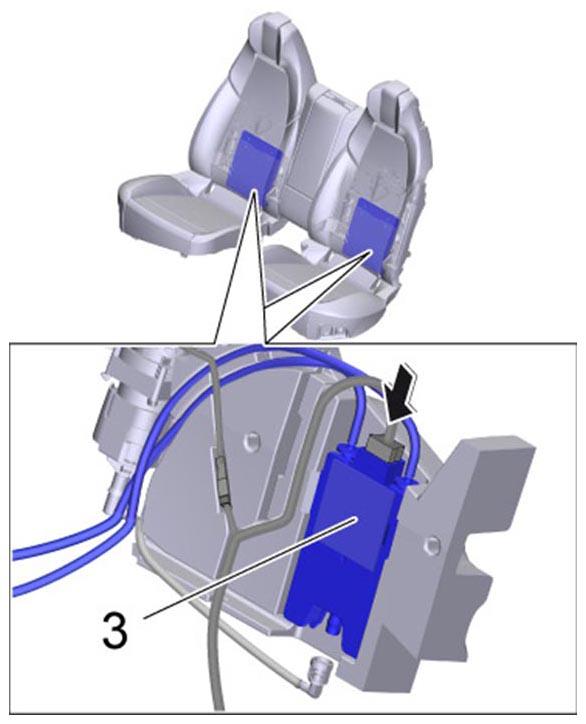

Fig 1: Connecting Electric Plug Connection
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Position lumbar support -2- on the foam part -arrow B- .
Clip in fixing clips -1- .

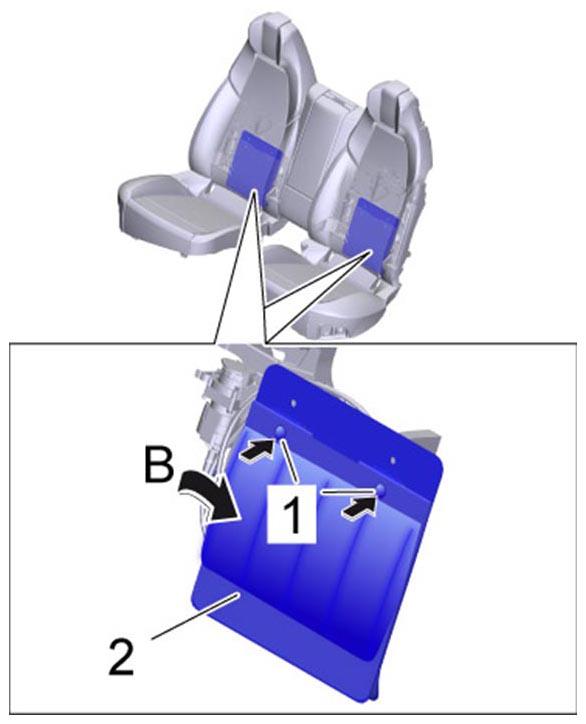

Fig 2: Clipping In Fixing Clips
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Install motor for lumbar support. → Installing Motor For Rear Lumbar Support
Insert foam part into the backrest frame.
