Removing Rear Backrest

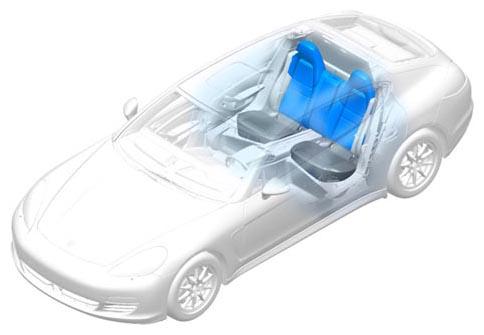

Fig 1: Identifying Installation Position Of Rear Backrest

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

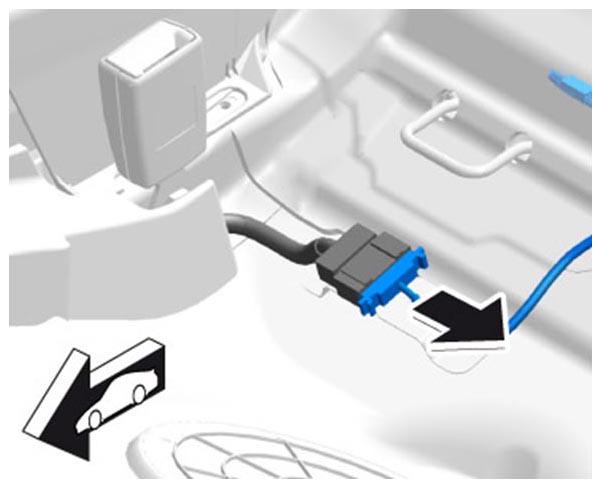

Release electric plug connection and disconnect it.

Fig 2: Disconnecting Electric Plug Connection
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Fold the backrest down.

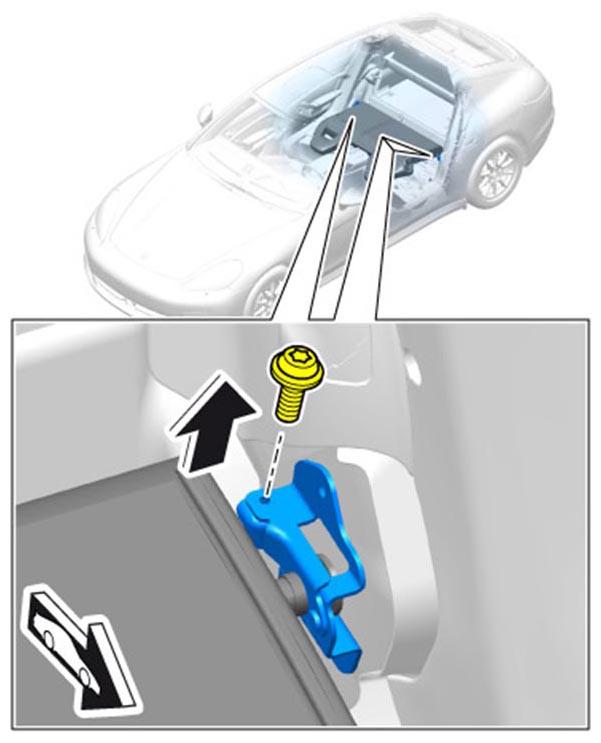

Unscrew fastening screw for securing clip at the outside of the vehicle.

Fig 3: Folding Backrest
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

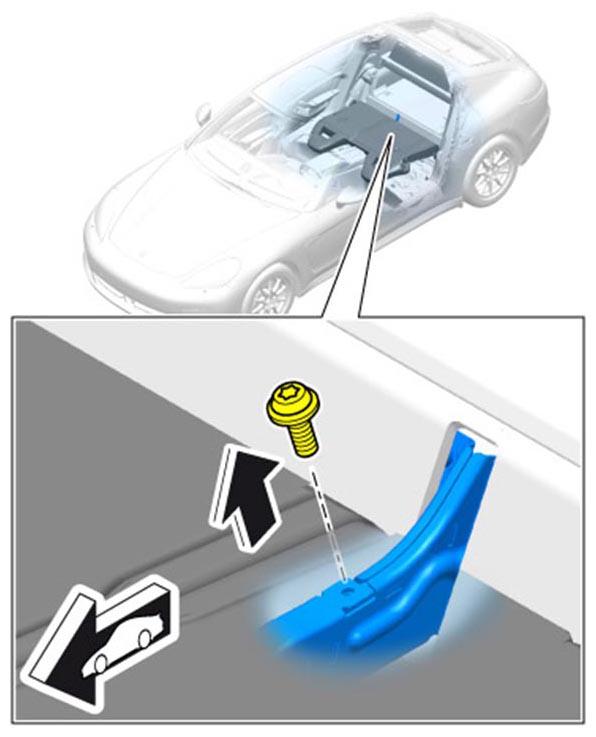

Unscrew fastening screw for securing clip in the center of the vehicle.

Fig 4: Securing Clip In Center Of Vehicle
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

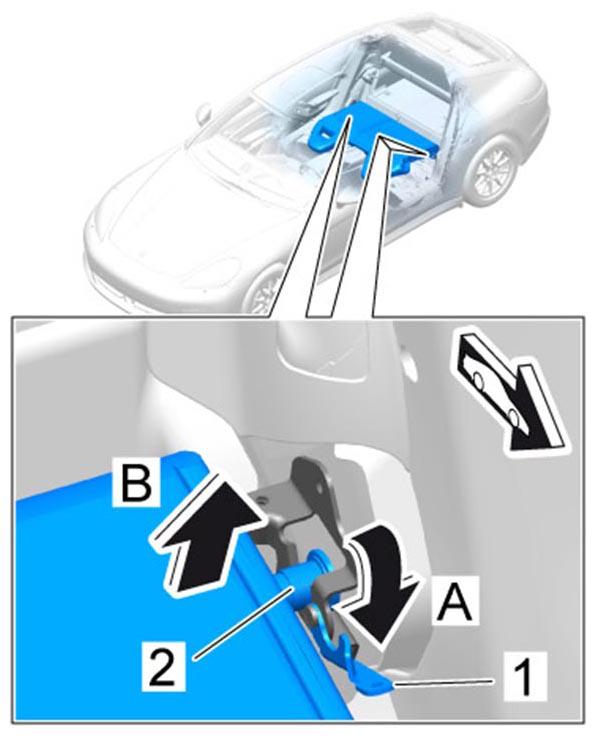

Open the securing clip -1- at the outside of the vehicle -arrow A- .

Fig 5: Opening Securing Clip At Outside Of Vehicle
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

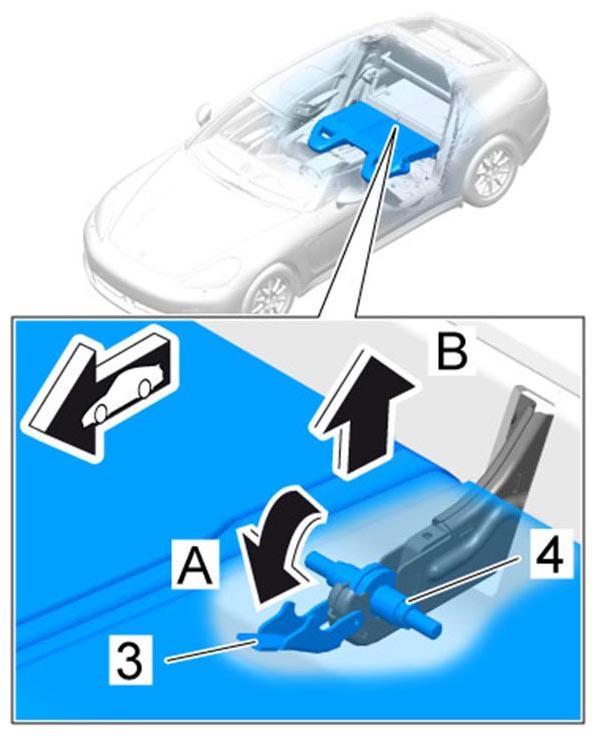

Open the securing clip -3- in the center of the vehicle -arrow A- .
Disengage bolts -2- and -4- on the backrest and remove backrest -arrow B- .

Fig 6: Opening Securing Clip In Centre Of Vehicle

Courtesy of PORSCHE CARS NORTH AMERICA, INC.
