Removing Backrest Frame

Information

• The number of connectors and tie-wraps can vary, depending on seat equipment.
• Plug in or out all connectors going to the backrest.
• Cut and replace all tie-wraps used to secure the wire harness to the backrest.

1. Only for seats without lumbar support and/or Adaptive sports seats with air cushions in the side bolsters:

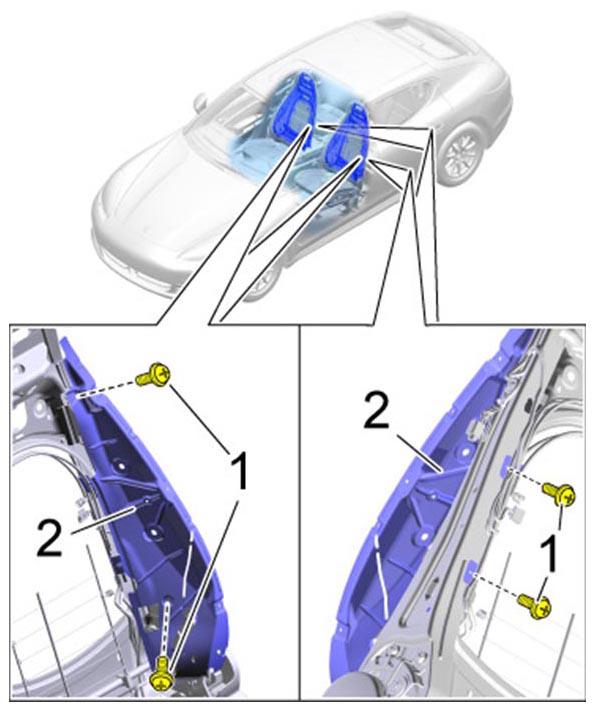

   Unscrew fastening screws -1-  and remove the left backrest side-bolster support -2-  .

   Fig 1: Identifying Left Backrest Side-Bolster Support And Mounting Screws

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.
2. Remove inner spring on backrest frame.

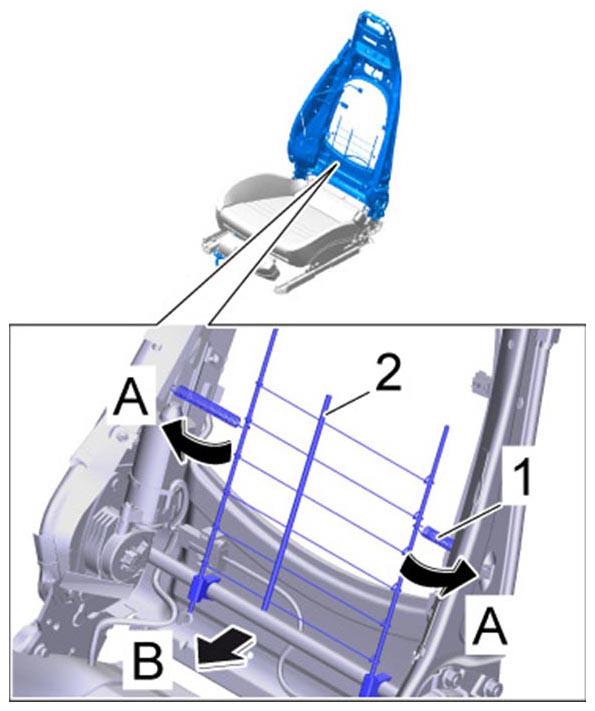

   1. 2.1. Disengage tension springs -1-  at the left and right from the inner spring -2-  (-A-  ).
   2. 2.2. Unclip inner spring -2-  on backrest frame at the drive shaft -B-  and remove inner spring.
   3. 2.3. Disengage tension springs -1-  on the backrest frame.
   Fig 2: Removing Inner Spring
   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

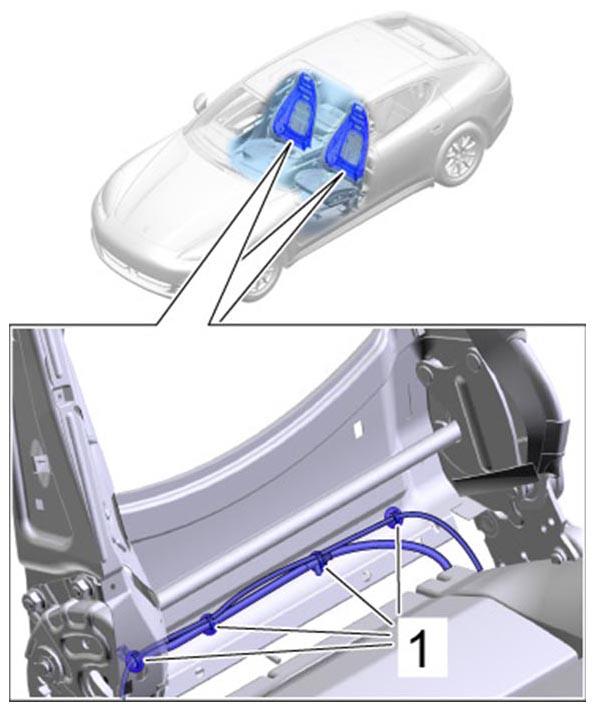

3. Cut the tie-wraps -1-  on the lower part of the backrest frame using side cutters.
   Fig 3: Identifying Tie-Wraps Cutting Position

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

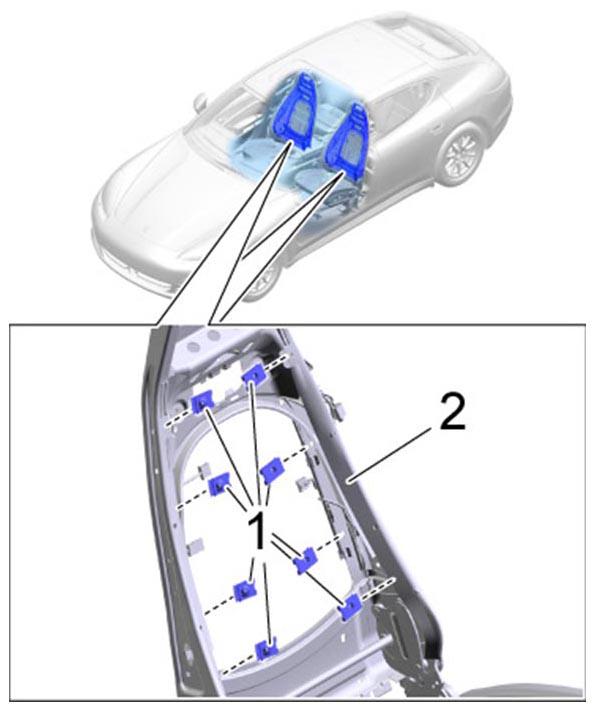

4. Pull fastening nuts -1-  out of the backrest frame -2-  , check them and replace them if necessary.
   Fig 4: Identifying Backrest Frame Fastening Nuts

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.
5. Remove wire harness for rear backrest.

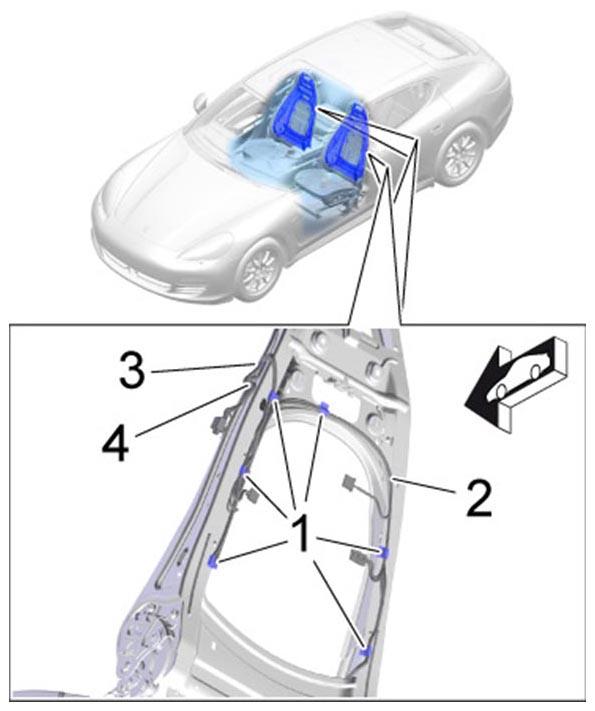

   1. 5.1. Pull the retaining clips -1-  for the rear wire harness -2-  along with the lines off the backrest frame.

      Only for seats with lumbar support and/or Adaptive sports seats with air cushions in the side bolsters.

   2. 5.2. Remove holder -3-  for the wire harness for the side airbag -4-  along with the lines from the backrest frame.
   Fig 5: Removing Wire Harness For Rear Backrest
   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

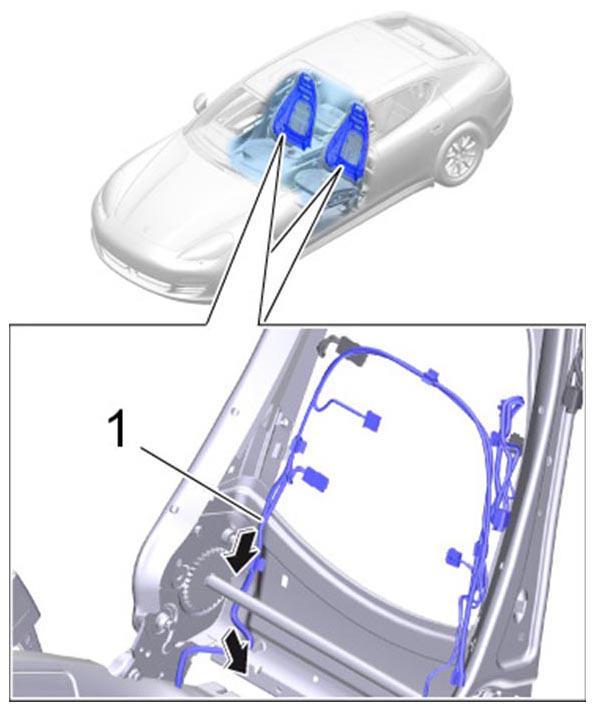

   3. 5.3. Guide the rear wire harness -1-  through between the backrest and seat surface in a downward direction -arrows-  .
      Fig 6: Guiding Wire Harness Between Backrest And Seat Surface

      Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Information

   Two people are needed in order to remove and install the backrest frame.

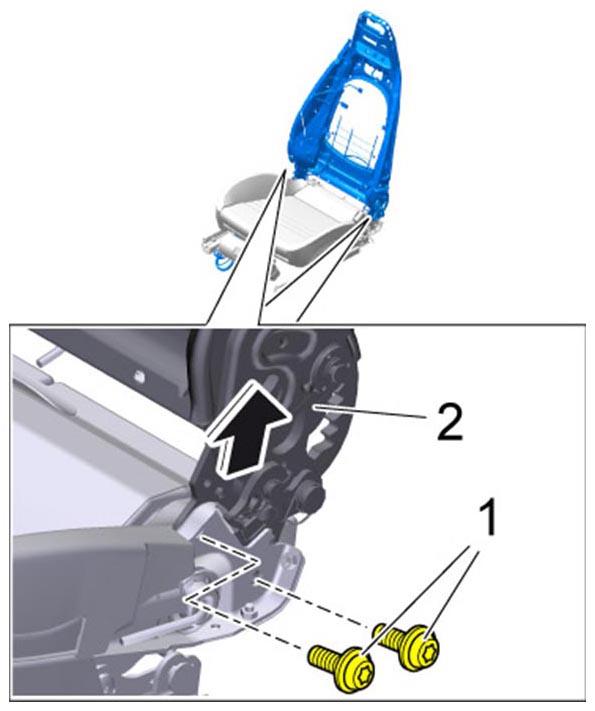

6. Unscrew fastening screws -1-  and remove backrest frame -2-  (-2-  ).
   Fig 7: Removing Backrest Frame Fastening Screws

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.
