Removing Trim Panel For Control Panel

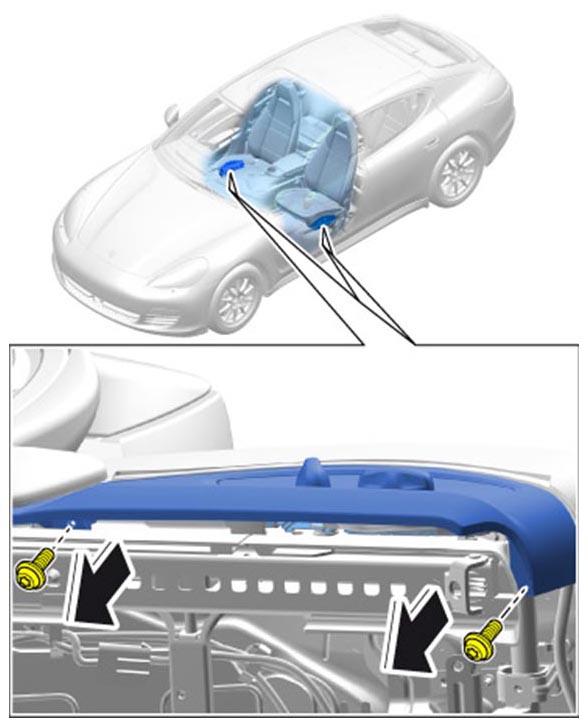

  1. Unscrew fastening screws -arrows-  on the trim panel.
    Fig 1: Removing Fastening Screws
    G09812526Courtesy of PORSCHE CARS NORTH AMERICA, INC.

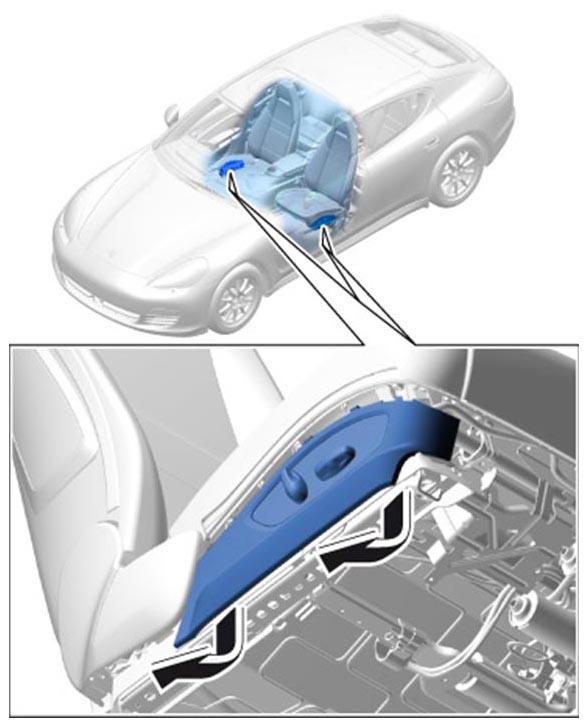

  2. Detach trim panel from the clips and remove it -arrows-  .
    Fig 2: Removing Trim Panel For Control Panel
    G09812527Courtesy of PORSCHE CARS NORTH AMERICA, INC.

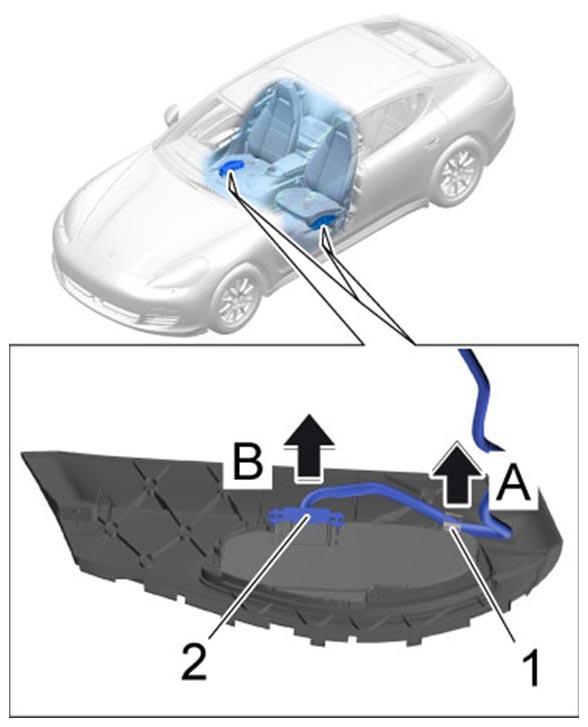

  3. Remove retaining clip -1-  with wiring harness by pulling it upwards -A-
  4. Release connector -2-  at the control panel and pull it off -B-  .
    5. Fig 3: Pulling Off Connector For Control Panel
    G09812528Courtesy of PORSCHE CARS NORTH AMERICA, INC.
