Installing Horn

  1. Place the horn in installation position.
  2. Tighten hexagon nut -1-  . → Tightening torque: 13 Nm (9.5 ftlb.)
  3. Connect the plug connection until the connector engages securely.

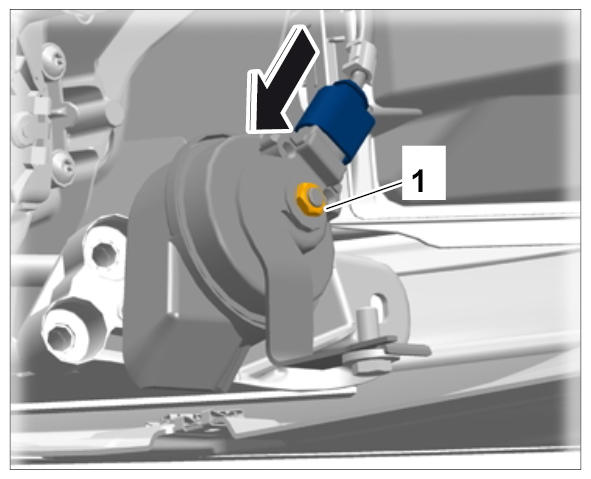

    Fig 1: Installing Horn
    G09813701Courtesy of PORSCHE CARS NORTH AMERICA, INC.
