Height Measurement Point On Front Axle

The distance (center of wheel) between the lower edge of the wing to the center of the axle -1-  is measured.

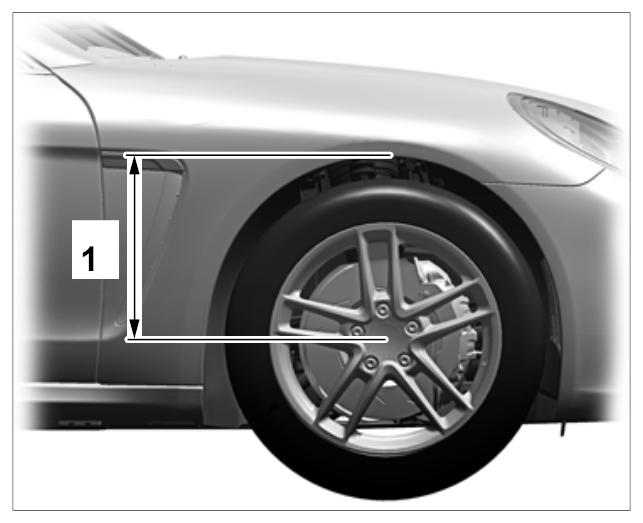

Fig 1: Checking Dimension Between Centre Of Wheel To Lower Edge Of Wing
G09807737Courtesy of PORSCHE CARS NORTH AMERICA, INC.
