Removing Belt Tensioner

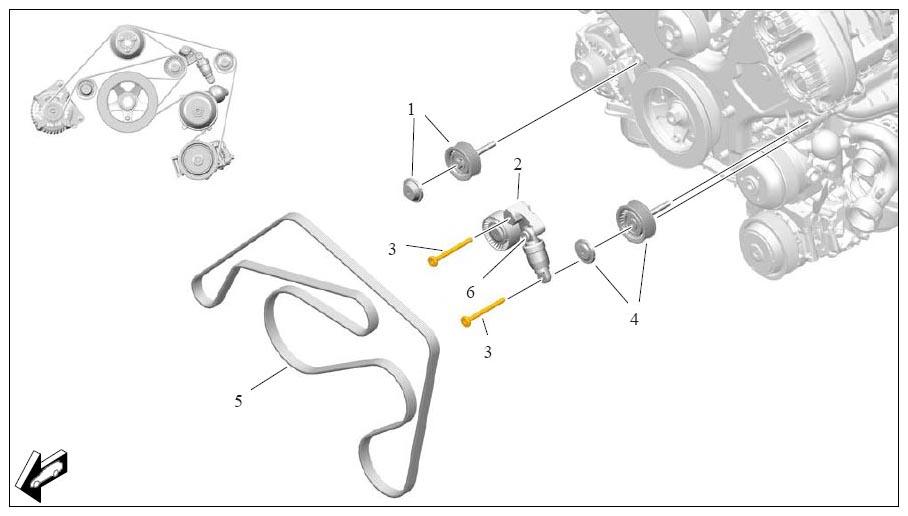

  1. Unscrew screws -3-  and remove belt tensioner.
    Fig 1: Identifying Belt Drive Components
    G09804404Courtesy of PORSCHE CARS NORTH AMERICA, INC.

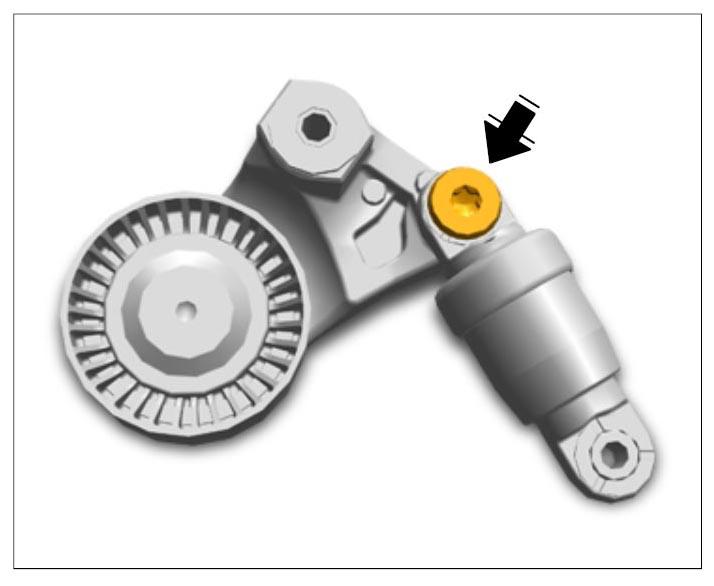

  2. The connecting screw -arrow-  does not  have to be loosened in order to remove the belt tensioner.
    Fig 2: Locating Damper/Tensioner
    G09804405Courtesy of PORSCHE CARS NORTH AMERICA, INC.
