Removing Drive Plate

  1. Counter-hold tool 3435  must be secured to the drive plate with two M8 x 20 screws -arrows-  .

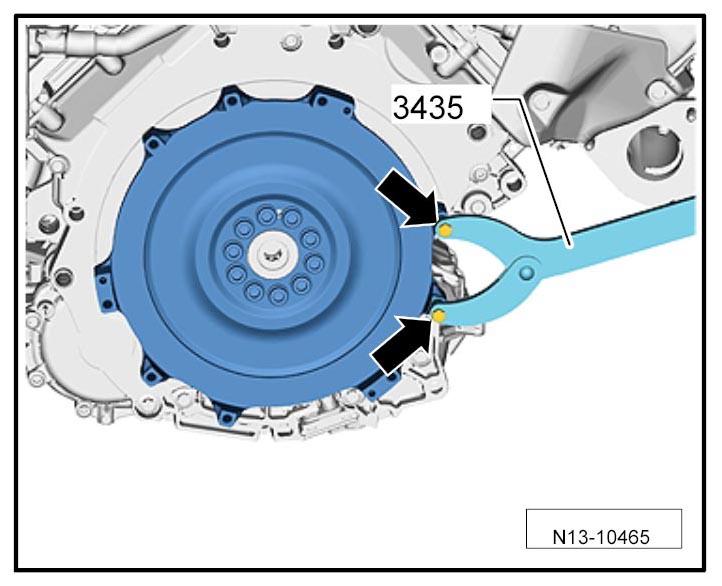

    Fig 1: Securing Drive Plate
    G09804402Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  2. Unscrew drive plate screws and remove the drive plate.
