Overview Of Threaded Joints For Oil Guide Housing

V6 naturally aspirated engine - Panamera

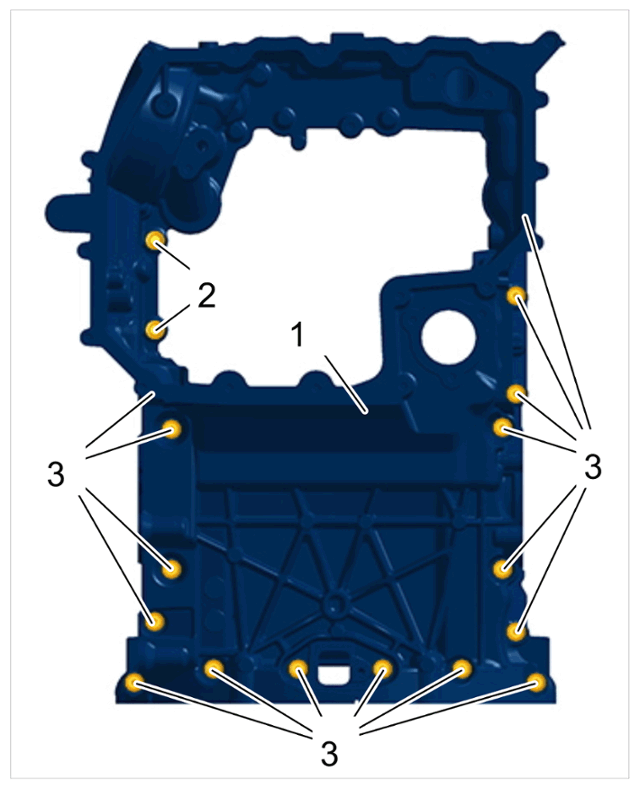

Fig 1: Oil Guide Housing Threaded Joints Components Location With Torque Specification - V6 Naturally Aspirated Engine - Panamera

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Threaded joints for oil guide housing on V6 naturally aspirated engine - Panamera

1	Oil guide housing
2	Screw, M6 x 25 (steel) > Tightening torque 12 Nm (9 ftlb.)
3	Screw, M6 x 30 (aluminum)/replace > Initial tightening 4 Nm (3 ftlb.) > Final tightening + 90°

V6 biturbo engine - Panamera 2WD

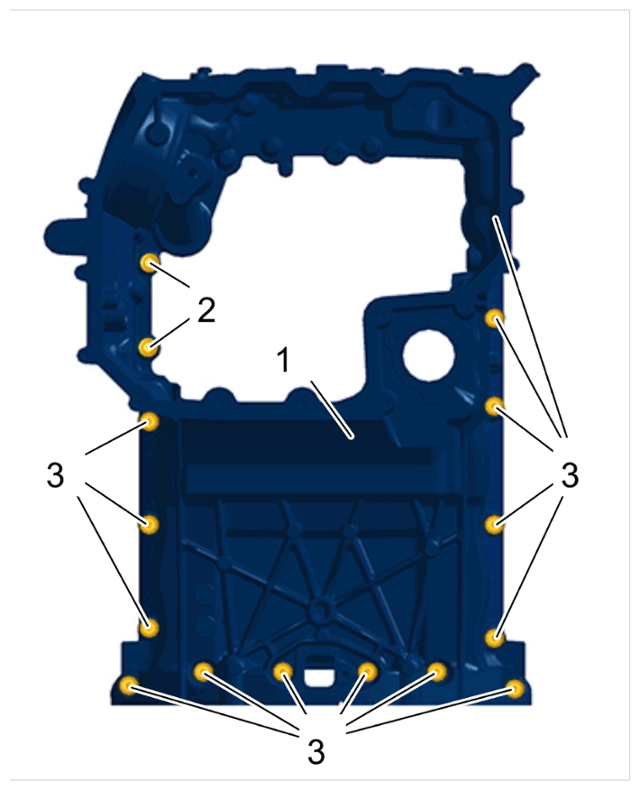

Fig 2: Oil Guide Housing Threaded Joints Components Location With Torque Specification - V6 Biturbo Engine - Panamera 2WD

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Threaded joints for oil guide housing on V6 biturbo engine - Panamera 2WD

1	Oil guide housing
2	Screw, M6 x 25 (steel) > Tightening torque 12 Nm (9 ftlb.)
3	Screw, M6 x 30 (aluminum)/replace > Initial tightening 4 Nm (3 ftlb.) > Final tightening + 90°

V6 biturbo engine - Panamera 4WD

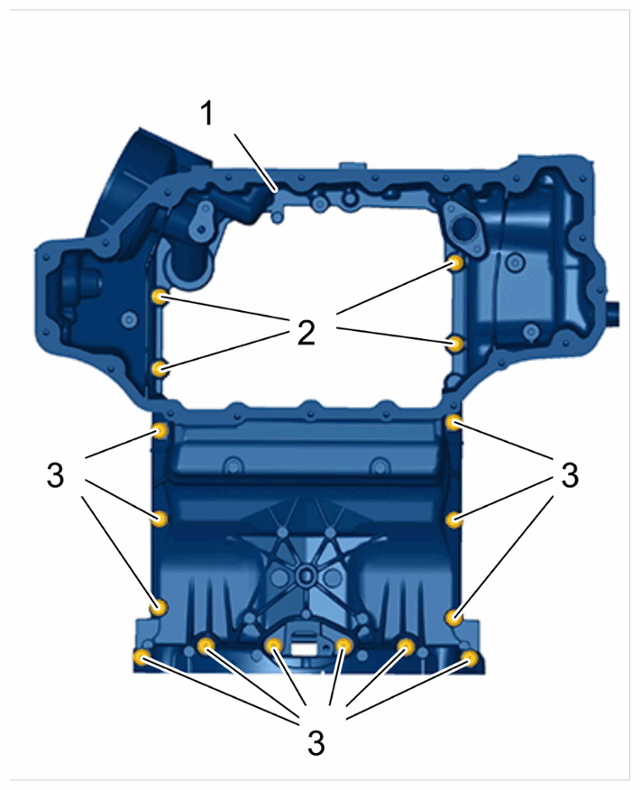

Fig 3: Oil Guide Housing Threaded Joints Components Location With Torque Specification - V6 Biturbo Engine - Panamera 4WD

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Threaded joints for oil guide housing on V6 biturbo engine - Panamera 4WD

1	Oil guide housing
2	Screw, M6 x 25 (steel) > Tightening torque 12 Nm (9 ftlb.)
3	Screw, M6 x 30 (aluminum)/replace > Initial tightening 4 Nm (3 ftlb.) > Final tightening + 90°

V6 biturbo engine - Cayenne

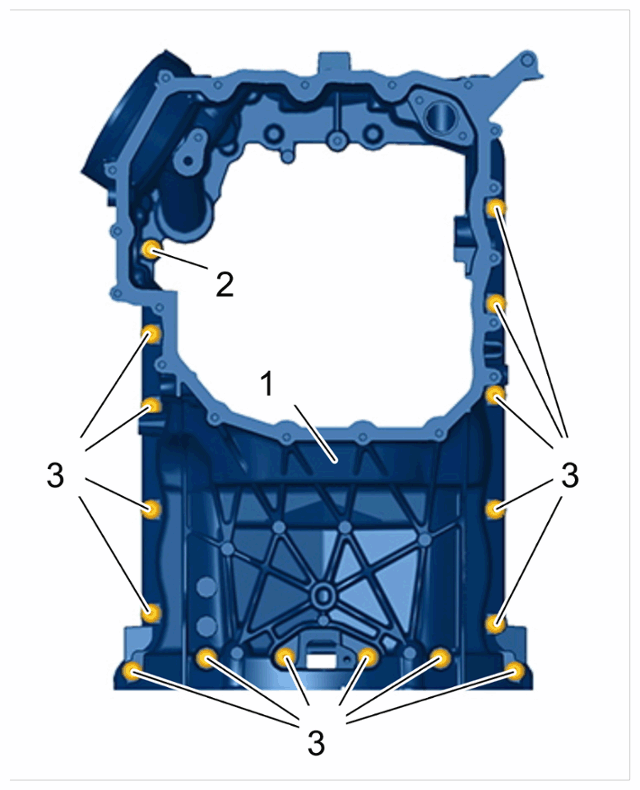

Fig 4: Oil Guide Housing Threaded Joints Components Location With Torque Specification - V6 Biturbo Engine - Cayenne

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Threaded joints for oil guide housing on V6 biturbo engine - Cayenne

1	Oil guide housing
2	Screw, M6 x 25 (steel) > Tightening torque 12 Nm (9 ftlb.)
3	Screw, M6 x 30 (aluminum)/replace > Initial tightening 4 Nm (3 ftlb.) > Final tightening + 90°

V6 biturbo engine - Macan

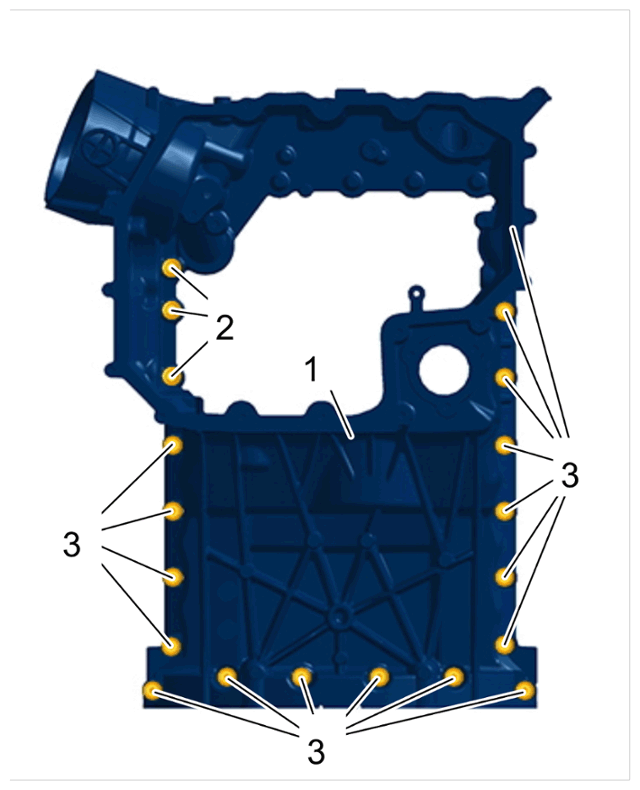

Fig 5: Oil Guide Housing Threaded Joints Components Location With Torque Specification - V6 Biturbo Engine - Macan

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Threaded joints for oil guide housing on V6 biturbo engine - Macan

1	oil guide housing
2	Screw, M6 x 25 (steel) > Tightening torque 12 Nm (9 ftlb.)
3	Screw, M6 x 30 (aluminum)/replace > Initial tightening 4 Nm (3 ftlb.) > Final tightening + 90°
