Removing Oil Pressure Control Valve

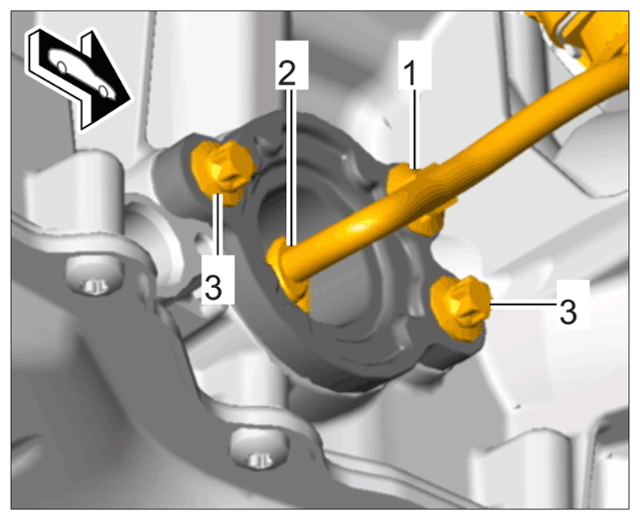

Disconnect cable plug and loosen screws on the oil pressure control valve flange.
Loosen retaining clip -1- .

Release connector -2- and pull it off.

Set connector and cable aside and secure if necessary.

Unscrew and remove screws -3- .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Cable plug and screws for oil pressure control valve

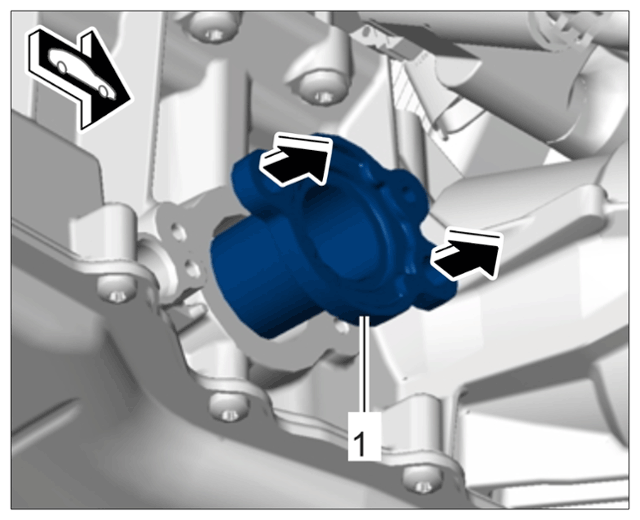

Pull out sealing flange -1- (-Arrows- ).

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Pulling out sealing flange

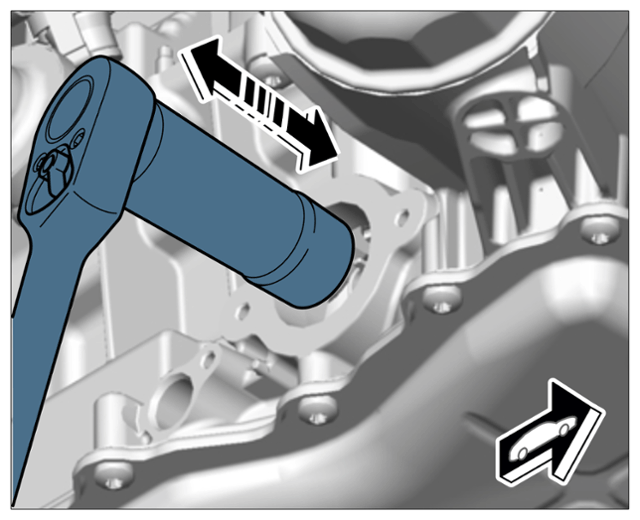

Unscrew cap screw on the oil pressure control valve using > 9753 - socket-wrench insert .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Using socket-wrench insert

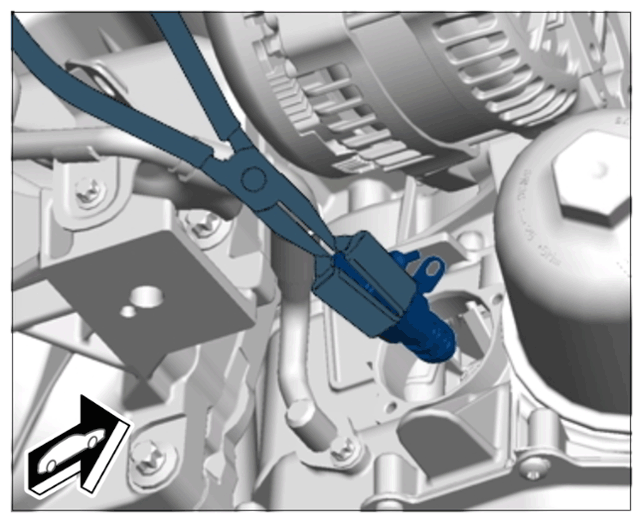

Grip oil pressure control valve with a > 9235 - relay puller and turn carefully to remove it.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Removing/fitting oil pressure control valve
