Component Overview

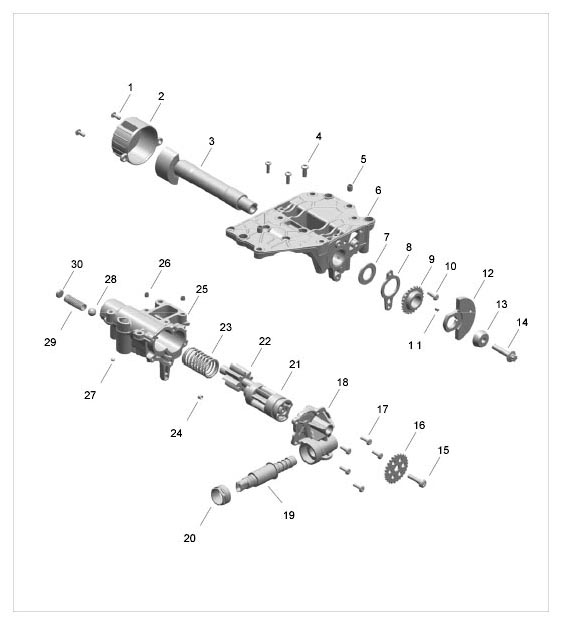

Fig 1: Exploded View Of Oil Pump Balance Shaft Module
G09804885Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  1. M6 screw; not disassembled
  2. Cover
  3. Balance shaft
  4. M6 screw; not disassembled
  5. Dowel sleeve
  6. Balance-shaft housing with bearing sleeves; not disassembled
  7. Axial disc
  8. Safety cover
  9. Sprocket for balance shaft
  10. M6 screw
  11. Feather key
  12. Centrifugal weight
  13. Cone washer
  14. Collared cheese head bolt
  15. Cheese head bolt, replace
  16. Sprocket
  17. M6 screw; not disassembled
  18. Housing
  19. Oil pressure control valve (solenoid valve)
  20. Cap screw
  21. Drive shaft
  22. Governor
  23. Compression spring
  24. Dowel sleeve
  25. Housing
  26. Dowel sleeve
  27. Cover
  28. Steel ball
  29. Compression spring
  30. Cover

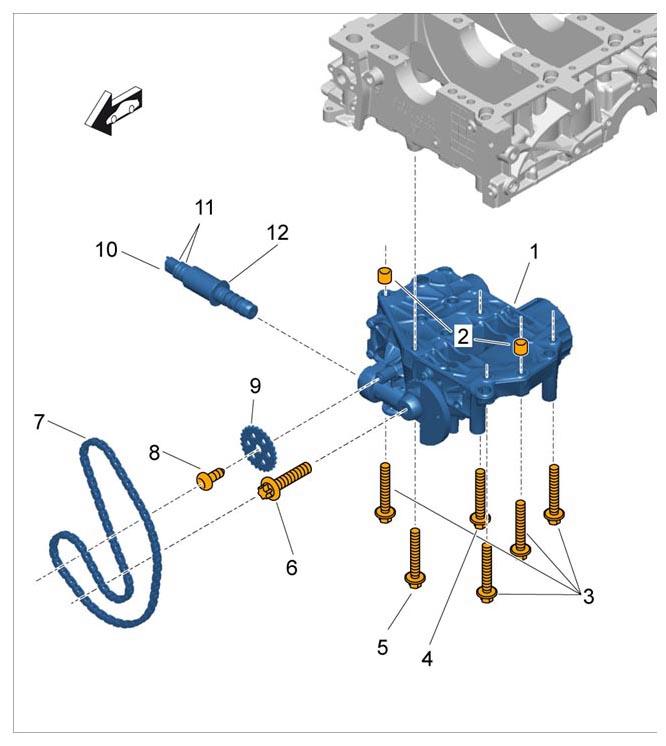

Fig 2: Identifying Oil Pump Components With Balance Shaft
G09804886Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  1. Oil pump with balance shaft
  2. Dowel sleeve
  3. Screw, M8 x 50 (4 ea.)
  4. Screw, M8 x 70 (1 ea.)
  5. Screw, M8 x 100 (1 ea.)
  6. Screw, M10 x 45; replace
  7. Drive chain
  8. Screw, M8 x 22; replace
  9. Oil pump sprocket
  10. Solenoid valve
  11. Sealing rings (grease before fitting)
  12. Cap screw, M36

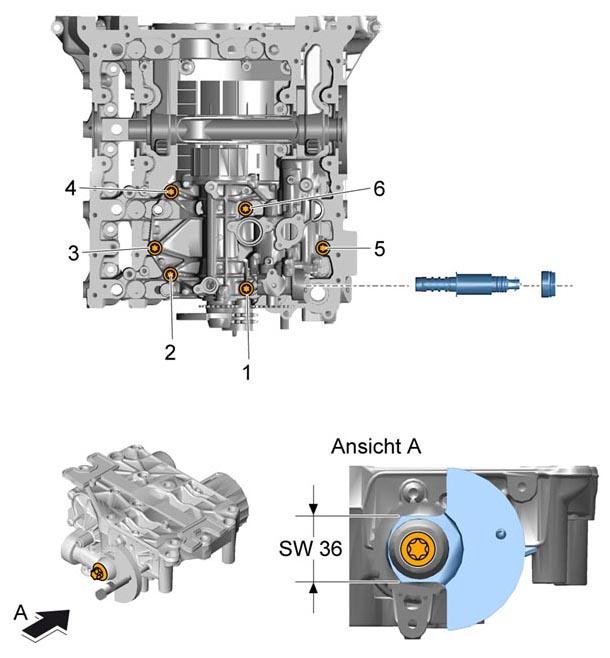

Fig 3: Identifying Tightening Sequence For Oil Pump And Balance Shaft
G09804887Courtesy of PORSCHE CARS NORTH AMERICA, INC.

- arrow A -  - View A; top view of balance weight on balance shaft; staking position using 6-mm drill bit or staking pin

SW 36  - 36 mm across flats (a/f); counter with an open-ended wrench

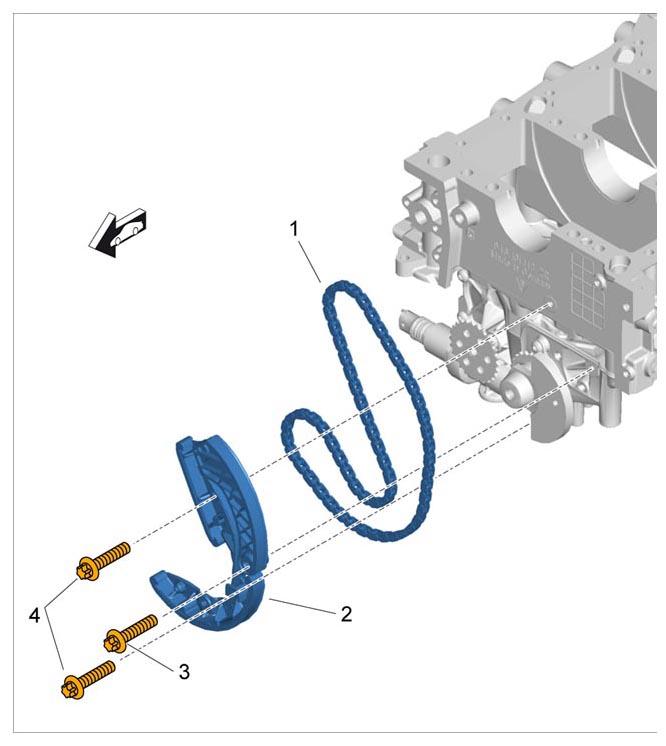

Fig 4: Identifying Oil Pump Chain Guide Components
G09804888Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  1. Drive chain for oil pump balance shaft module
  2. Guide and tensioning rail module
  3. Fastening screw, M6 x 35
  4. Fastening screws, M6 x 20

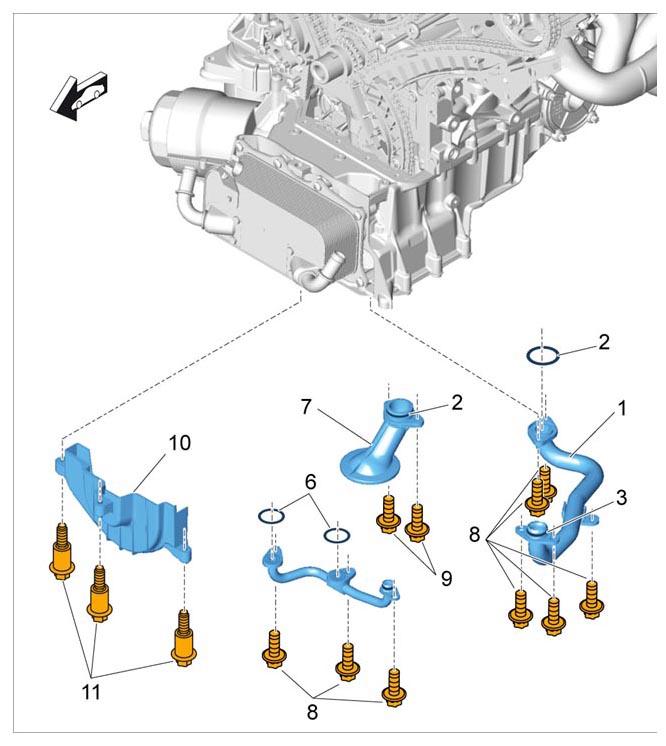

Fig 5: Identifying Oil Pipes, Fitted On Oil Pump And Oil Guide Housing
G09804889Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  1. Oil pressure pipe
  2. Sealing ring; oil before fitting
  3. Sealing ring; oil before fitting
  4. Oil regulating line
  5. Sealing ring; oil before fitting
  6. Sealing ring; oil before fitting
  7. Oil pump intake manifold
  8. Oil pipes to oil pump and oil guide housing
  9. Oil pipes to oil pump and oil guide housing
  10. Sprocket cover
  11. Fastening screws on sprocket cover

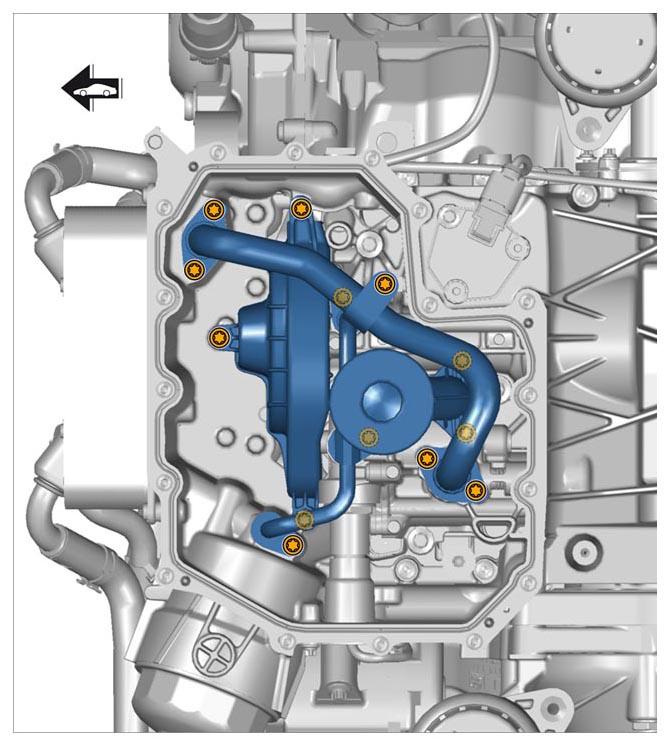

Fig 6: Identifying Oil Pipes, Fitted On Oil Pump And Oil Guide Housing
G09804890Courtesy of PORSCHE CARS NORTH AMERICA, INC.
