Installing Secondary-Air Pump With Bracket

Information

The tightening specifications for the basic engine are stored centrally.

> TECHNICAL VALUES

> WM 2X00IN TECHNICAL VALUES (PANAMERA, PANAMERA S, PANAMERA S EXECUTIVE, PANAMERA 4, PANAMERA 4S, PANAMERA 4 S EXECUTIVE)

or

> 1001IN TIGHTENING TORQUES, TIGHTENING SEQUENCES AND ASSEMBLY OVERVIEWS

Tightening torques and assembly instructions for other assemblies (e.g. chassis, electrics, transmission or body) or for peripheral engine equipment can be found in the corresponding documents.

Information

Always follow the instructions in the central information portion when using aluminium screws and magnesium components.

> 1001IN INFORMATION ON WORKING WITH ALUMINIUM SCREWS AND MAGNESIUM COMPONENTS - IMPORTANT!

1. Move secondary-air pump into installation position.

   Fit cable plug -1-.

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

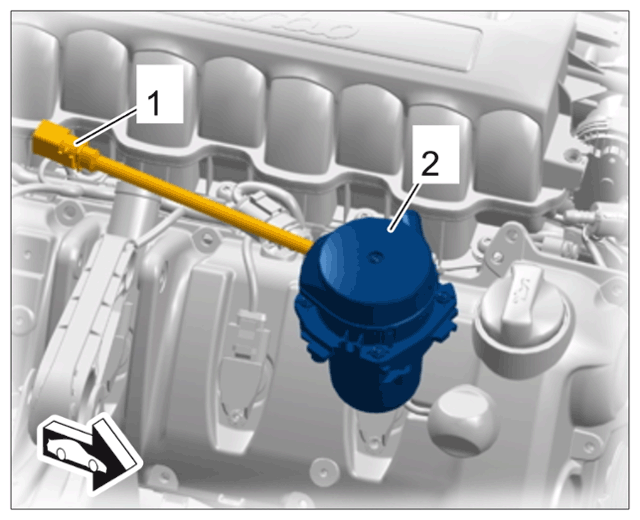

   Cable plug for secondary-air pump

   Fit design cover.

   > 108319 REMOVING AND INSTALLING ENGINE COVER (DESIGN COVER)

   Slide on secondary-air line and fit spring band clamp.

   Fit new screws on the bracket -4-  and fit the bracket on the valve cover. Replace the connecting screws when separating the bracket and secondary-air pump -3-  .

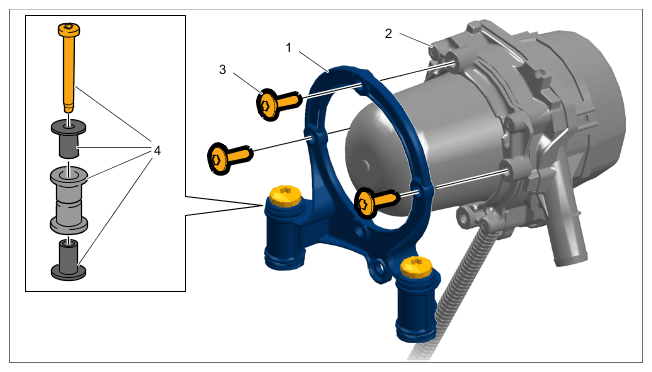

   Fig 1: Secondary Air Pump With Mounting Components Location

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Secondary-air pump with mounting

   1	Bracket
   2	Secondary-air pump
   3	Aluminium screw, M6
   4	Screw element
