Draining Coolant

→ Avoid contact with hot fluid.

→ Wear personal protective gear.

1. If you have not already done so, carefully open the cap on the coolant reservoir using gloves or a cloth. → Coolant reservoir cap

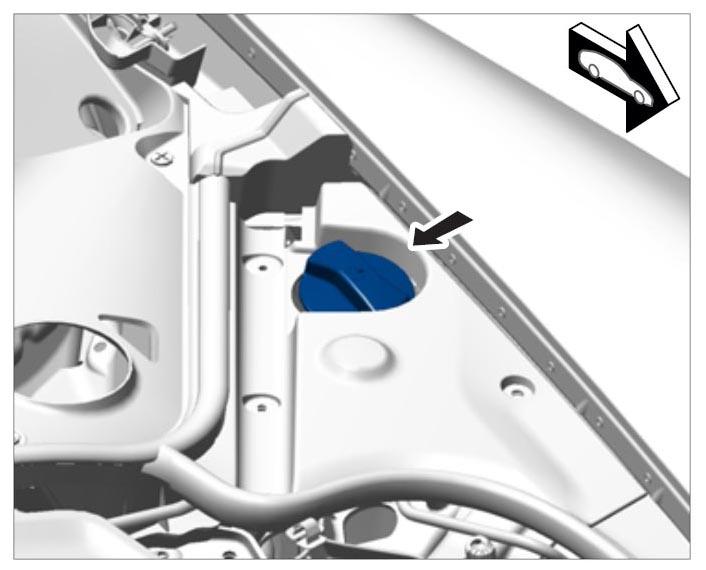

   Fig 1: Locating Coolant Reservoir Cap

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.
2. Move service clip on bleeder valve assembly to service position → Service position of bleeder valve assembly  . The bleeder valve assembly -2-  is located next to the filler neck for the coolant reservoir -1-  .

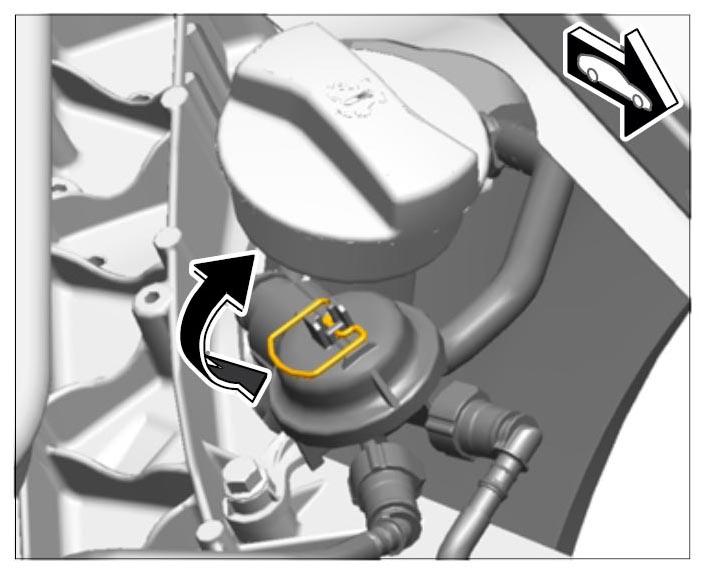

   Fig 2: Moving Service Clip On Bleeder Valve Assembly To Service Position

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.
   1. Filler neck
   2. Bleeder valve

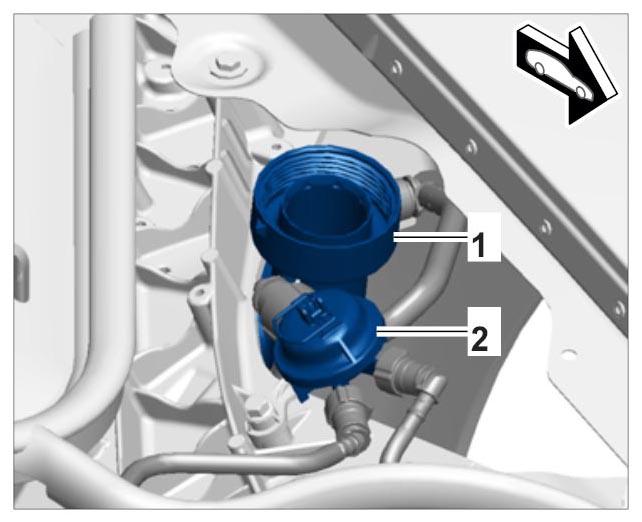

      Fig 3: Identifying Bleeder Valve And Filler Neck

      Courtesy of PORSCHE CARS NORTH AMERICA, INC.
3. Place drip pan under the radiator and open the drain plug. → Radiator drain plug

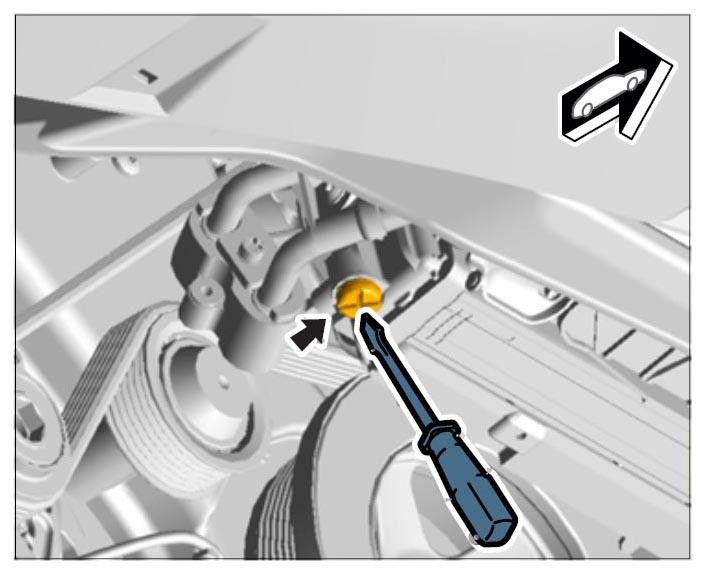

   Fig 4: Opening Radiator Drain Plug

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.
4. Proceed as follows if the cooling system needs to be bled again (in order to clean the cooling system for example):
   1. 4.1. Disconnect coolant hoses from the oil/water heat exchanger and collect emerging coolant.
   2. 4.2. Disconnect the small hose beside the generator and collect emerging coolant. A fastening screw for the generator is hidden behind the hose.
   3. 4.3. Disconnect hose for the coolant reservoir in the left wheel housing and collect emerging coolant.
   4. 4.4. Disconnect hose for the run-on pump in the left wheel housing and collect emerging coolant.

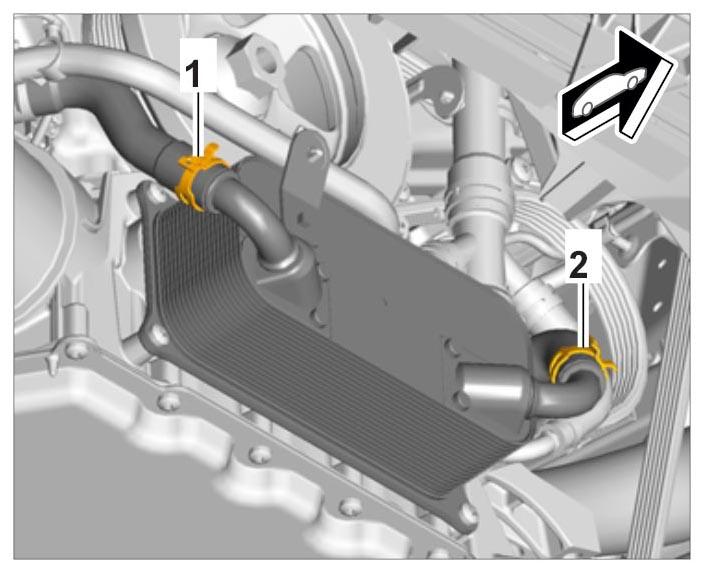

      Fig 5: Identifying Oil/Water Heat Exchanger Clips

      Courtesy of PORSCHE CARS NORTH AMERICA, INC.
5. Fit hoses. Fit radiator drain plug.

→ Avoid contact with hot fluid.

→ Wear personal protective gear.

1. If you have not already done so, carefully open the cap on the coolant reservoir using gloves or a cloth. → Coolant reservoir cap

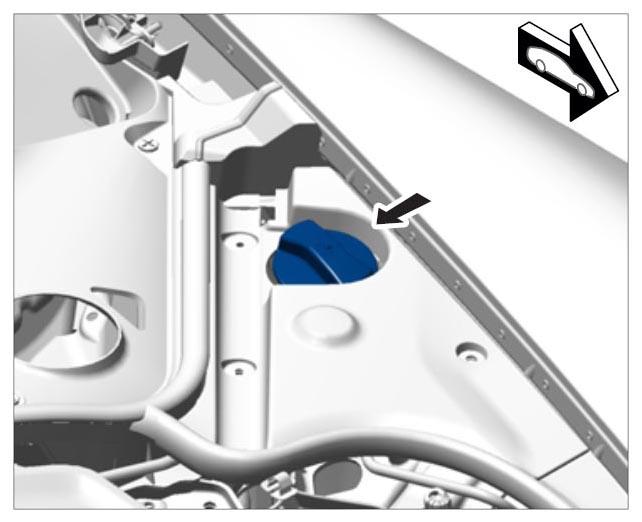

   Fig 1: Locating Coolant Reservoir Cap

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.
2. Move service clip on bleeder valve assembly to service position → Service position of bleeder valve assembly  . The bleeder valve assembly -2-  is located next to the filler neck for the coolant reservoir -1-  .

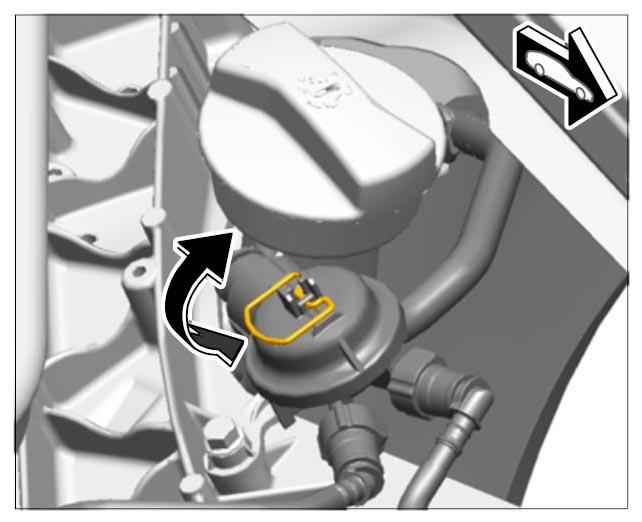

   Fig 2: Moving Service Clip On Bleeder Valve Assembly To Service Position

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.
   1. Filler neck
   2. Bleeder valve

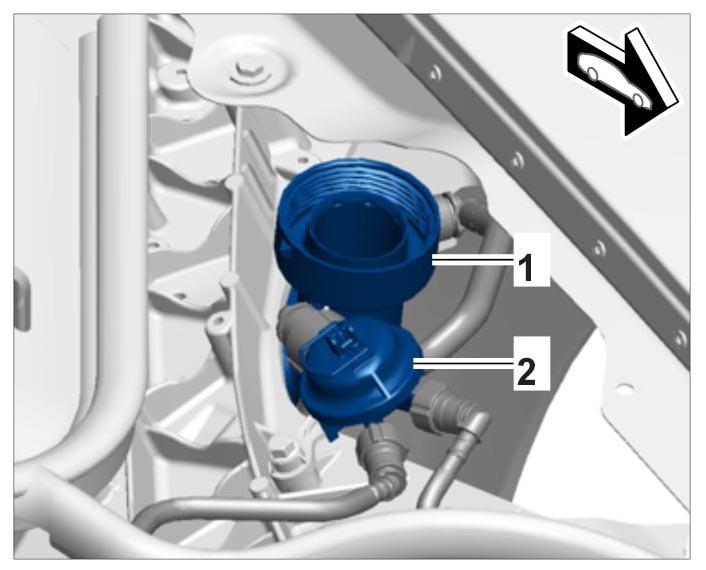

      Fig 3: Identifying Bleeder Valve And Filler Neck

      Courtesy of PORSCHE CARS NORTH AMERICA, INC.
3. Place drip pan under the radiator and open the drain plug. → Radiator drain plug

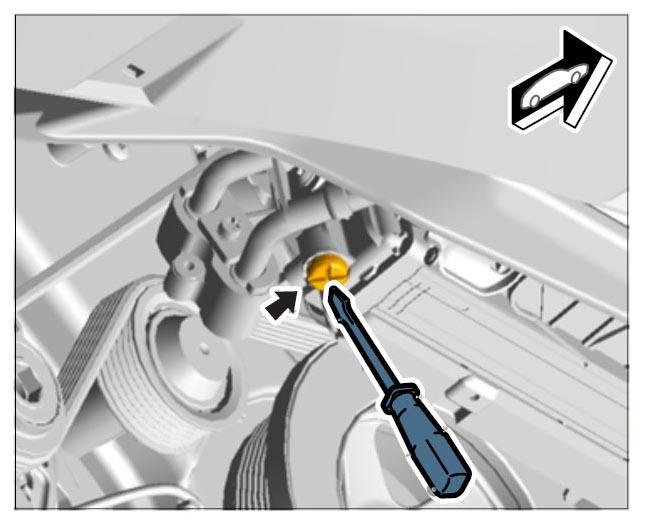

   Fig 4: Identifying Radiator Drain Plug

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.
4. Proceed as follows if the cooling system needs to be bled again (in order to clean the cooling system for example):
   1. 4.1. Disconnect coolant hoses from the oil/water heat exchanger and collect emerging coolant.
      Fig 5: Identifying Oil/Water Heat Exchanger Clips

      Courtesy of PORSCHE CARS NORTH AMERICA, INC.
   2. 4.2. Disconnect the small hose beside the generator and collect emerging coolant. A fastening screw for the generator is hidden behind the hose.
   3. 4.3. Disconnect hose for the coolant reservoir in the left wheel housing and collect emerging coolant.
   4. 4.4. Disconnect hose for the run-on pump in the left wheel housing and collect emerging coolant.
5. Fit hoses. Fit radiator drain plug.
