Installing Microswitch For Front Lid Lock

  1. Insert microswitch -1-  into the lower part of the lid lock and lock it.

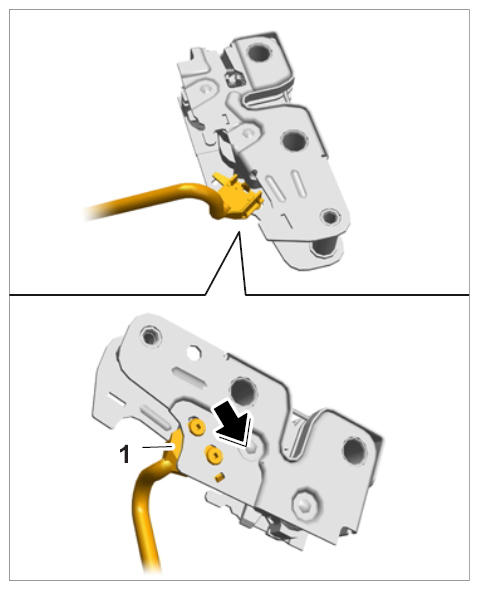

    Fig 1: Inserting Microswitch
    G09810196Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  2. Position cable and clip the connector -1-  into the body.

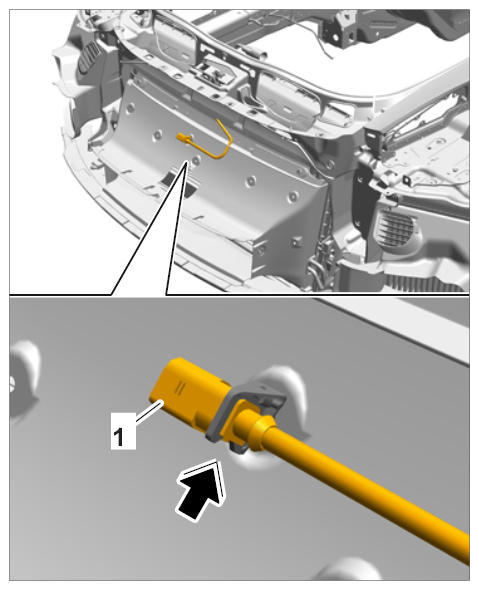

    Fig 2: Locating Cable And Clip Connector
    G09810197Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  3. Insert electrical plug connection at front-end wire harness until it engages securely.

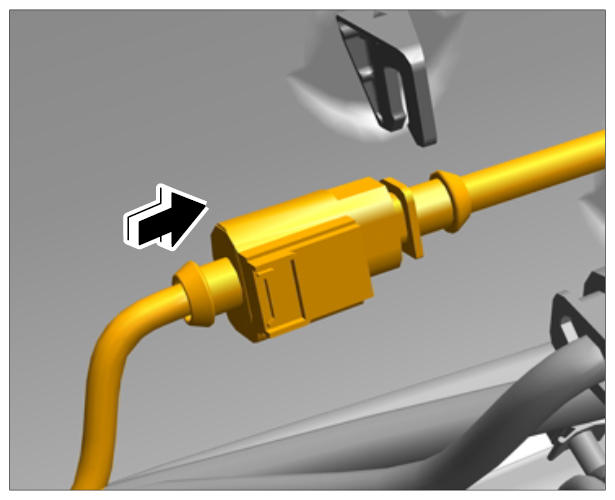

    Fig 3: Inserting Electrical Plug Connection At Front-End Wire Harness
    G09810198Courtesy of PORSCHE CARS NORTH AMERICA, INC.
