Gap Dimensions Of Rear Door

→

Gap dimension: 4.5 mm+0.7 mm-0.5 mm (T8)

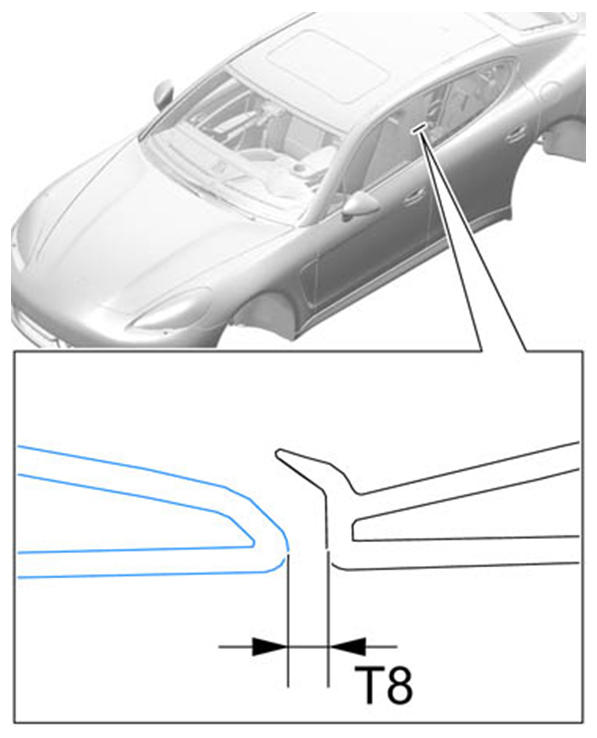

Fig 1: Identifying Gap Dimensions Of Rear Door (T8))

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Gap dimension

→

Gap dimension: 4.5 mm+0.7 mm-0.5 mm (T9)

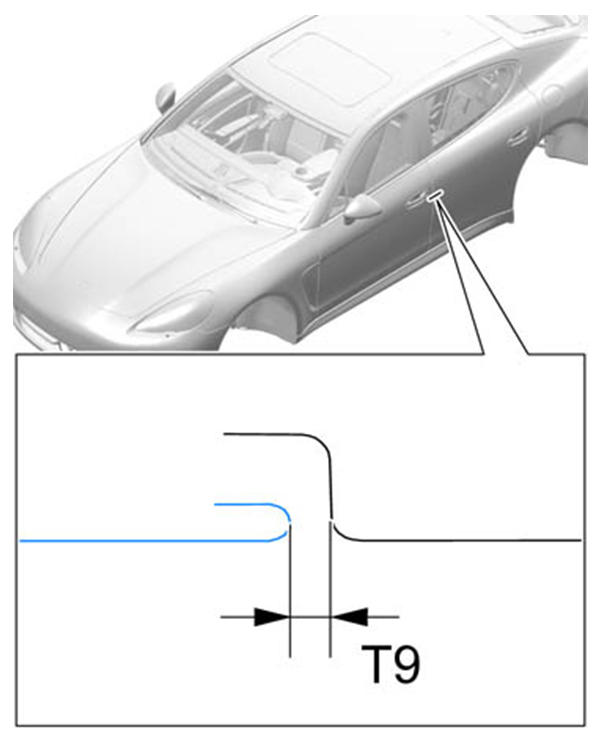

Fig 2: Identifying Gap Dimensions Of Rear Door (T9)

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Gap dimensions

→

Gap dimension: 4.5 mm-1 mm (T9a Only Lowered)

Fig 3: Identifying Gap Dimensions Of Rear Door (T9a)

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Gap dimensions

→

Gap dimension: 4 mm-1 mm (T10)

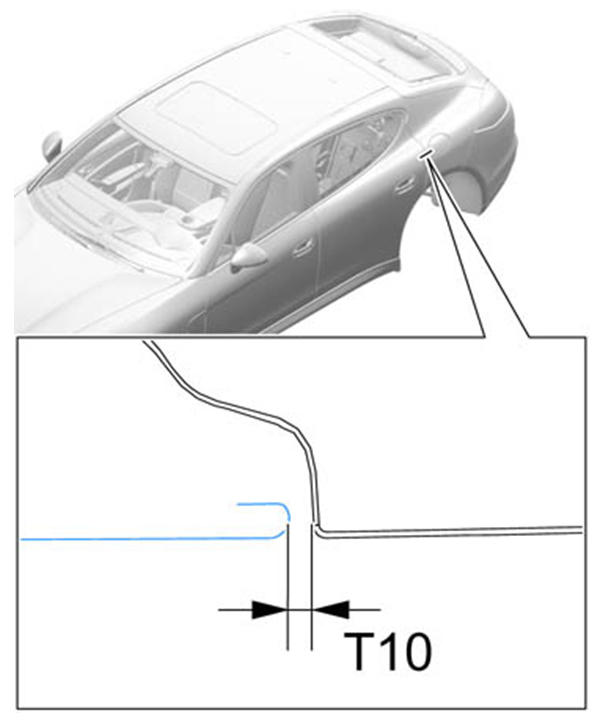

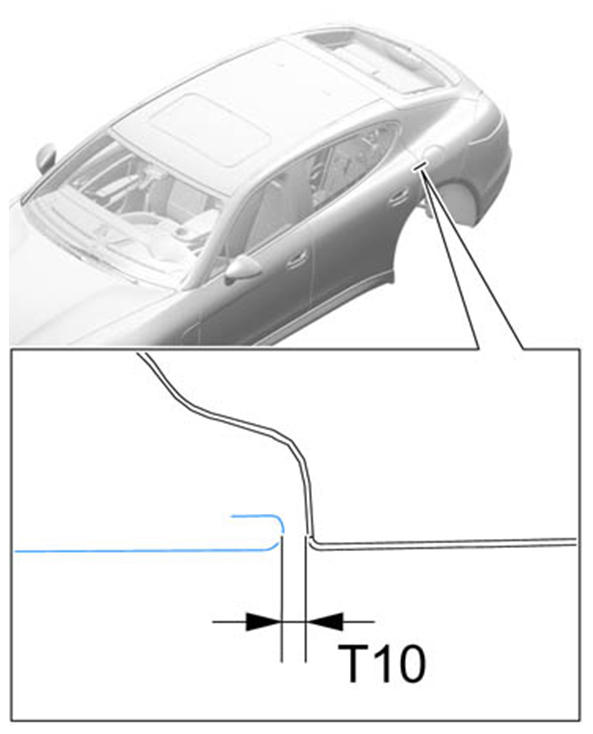

Fig 4: Identifying Gap Dimensions Of Rear Door (T10)

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Gap dimension

→

Gap dimension: 0 mm+1 mm (10a)

Fig 5: Identifying Gap Dimensions Of Rear Door (10a Raised Only)

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Gap dimension

→

Gap dimension: 4.5 mm+1 mm-1 mm (T11)

Gap dimension: 2.5 mm+1 mm-1 mm (T12)

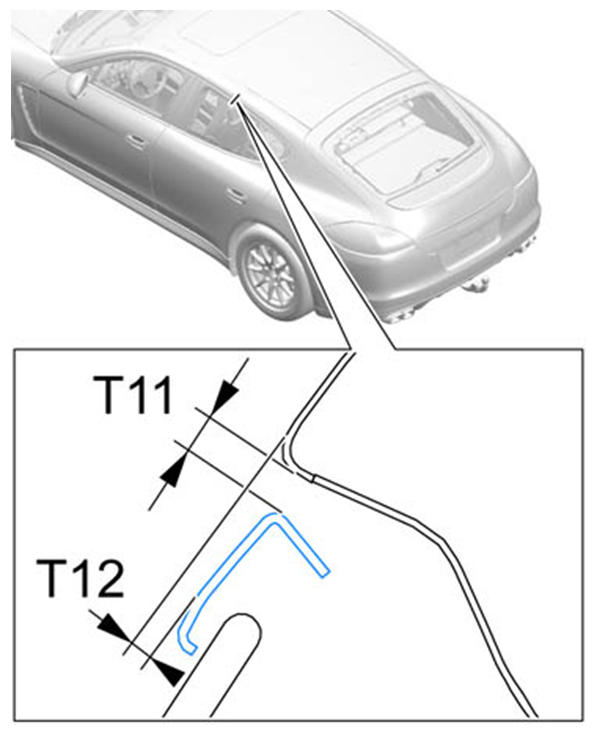

Fig 6: Identifying Gap Dimensions Of Rear Door (T11 & T12)

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Gap dimension

→

Gap dimension: 4.5 mm+1 mm-1 mm (T13)

Gap dimension: 0 mm-1 mm (T14)

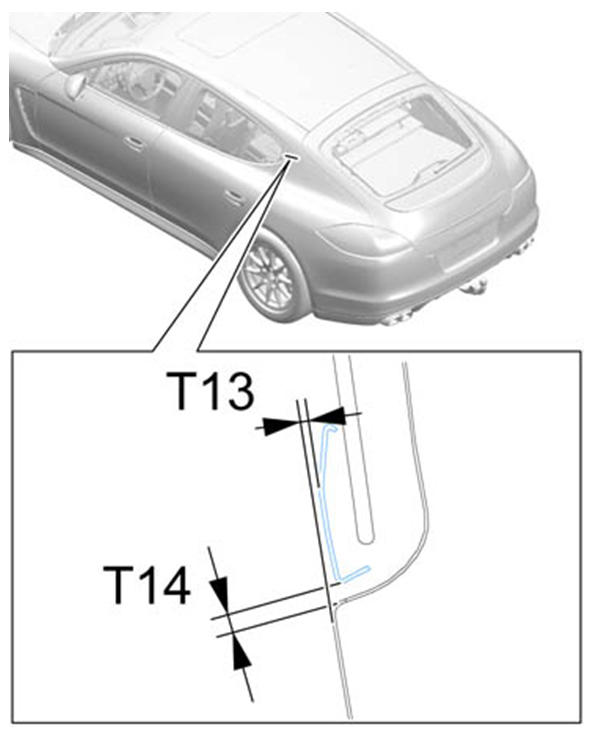

Fig 7: Identifying Gap Dimensions Of Rear Door (T13 & T14)

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Gap dimension
