Installing Switching Element For Filler Flap

Connect plug connection until it engages securely.

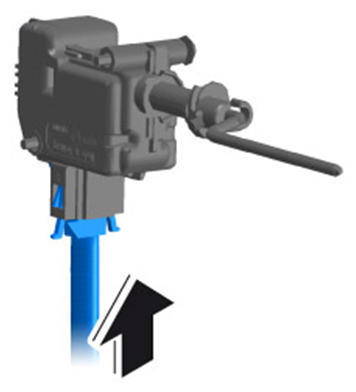

Fig 1: Connecting Plug Connection
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Guide locking pin for switching element for filler flap into the recess in the filler flap.
Guide switching element for filler flap -1- into the bracket -arrow- and place in installation position.

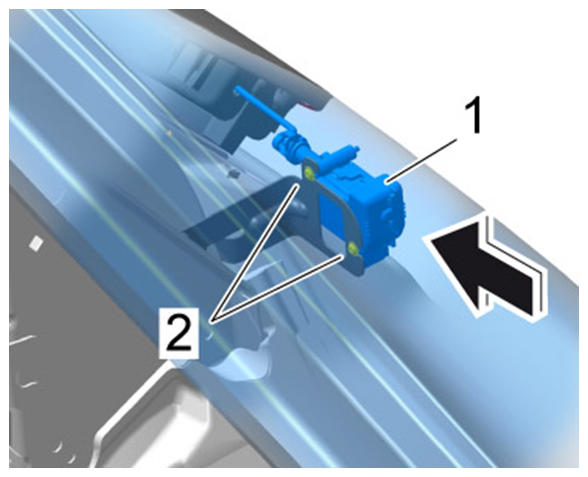

Fig 2: Installing Switching Element For Filler Flap
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
1. 3.1. Position switching element -1- so that the projection -x- of the locking pin -3- is 3 to 4 mm when retracted.

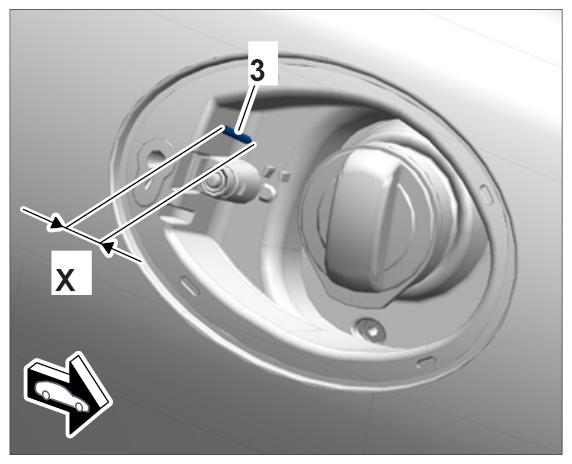

  Fig 3: Identifying Locking Pin Position
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.

  Information

  The holder might have to be re-bent in order to position the locking pin correctly.
Tighten fastening screws -2- for the filler flap switching element to → Tightening torque: 2.2 Nm (1.5 ftlb.)+10 % in order to secure it to the holder.
Install control unit for electronic parking brake.
1. 5.1. Place control unit for electronic parking brake in installation position.
2. 5.2. Screw in fastening screws -3- .

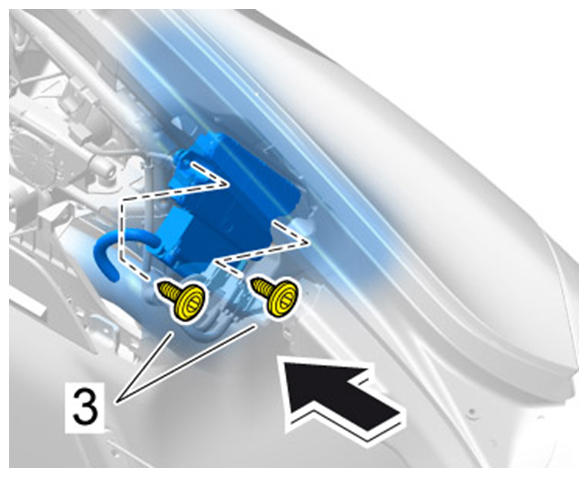

Fig 4: Installing Control Unit For Electronic Parking Brake
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Carry out function test with the filler flap open.
