55 - Lids, Flaps -- PANAMERA (970)
>>
WM 552519 Removing And Installing Front Lid Hinge (Except PANAMERA Executive, PANAMERA 4S Sport Edition, PANAMERA 4 Executive)
>>
Technical Values
Technical Values
Location
Description
Type
Basic value
Tolerance 1
Tolerance 2

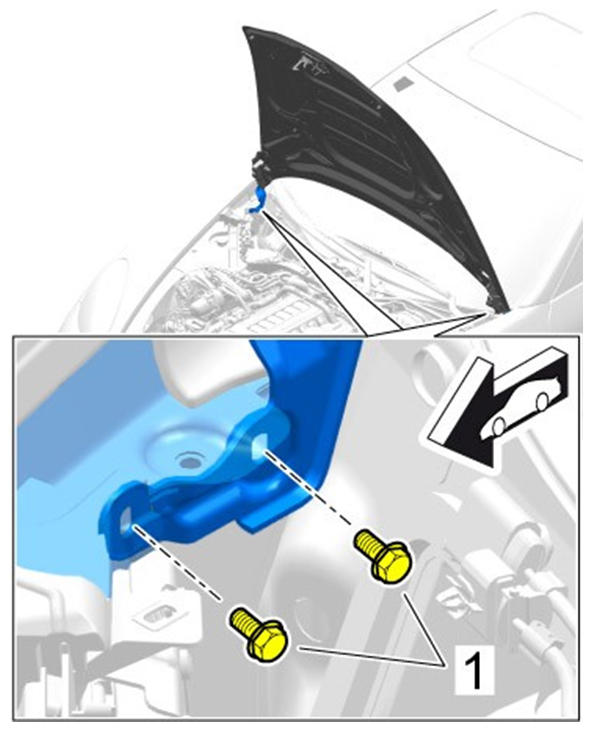

Fastening screws securing lid hinge to bodyshell
Item 1
Tightening torque
33 Nm (24 ftlb.)
Removing front lid hinge
