High Pressure In Refrigerant Circuit Depending On Outside Temperature - 2-Zone Air Conditioning

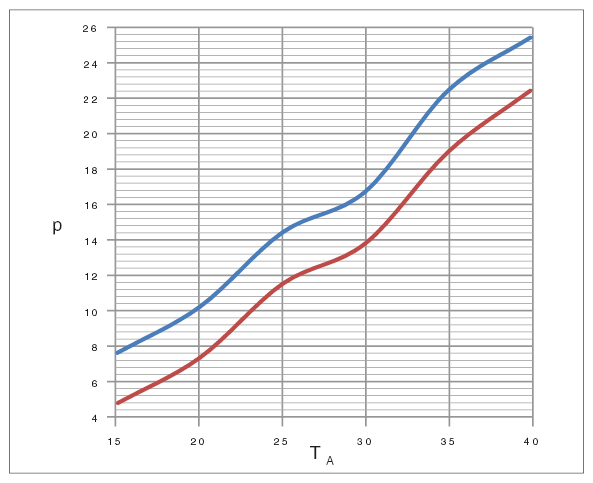

Fig 1: High Pressure Refrigerant Graph

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

blue  - Upper limit

red  - Lower limit

TA  - Outside temperature (°C)

P  - High pressure in refrigerant circuit (bar)
