Removing Battery

Information

Switch off all loads and remove the ignition key.

• Do not disconnect the battery while the engine is running.
• Disconnect and re-connect battery with extreme caution.

The battery is located in the luggage compartment under the luggage compartment cover/toolbox tray.

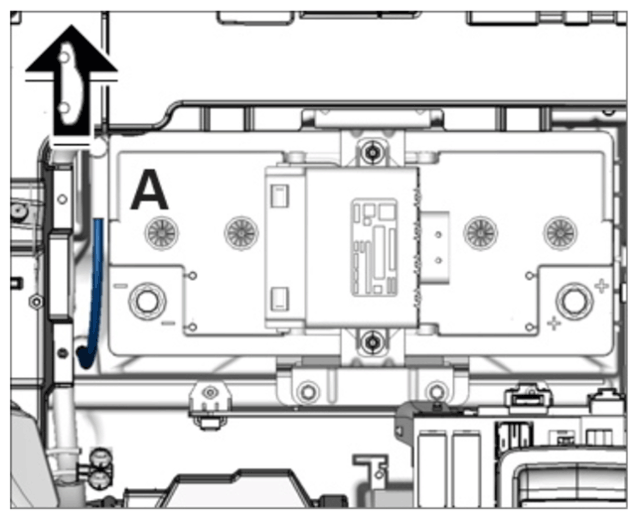

1. Pull the vent hose -A-  away from the battery.

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Central venting

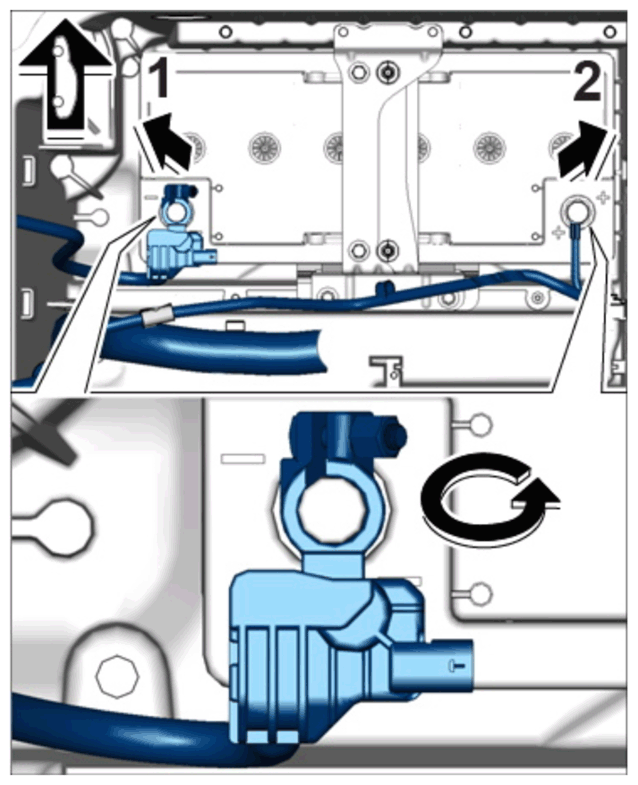

2. Risk of short circuit! First disconnect the negative cable -1-  then the positive -2-  .

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Removing terminal clamps

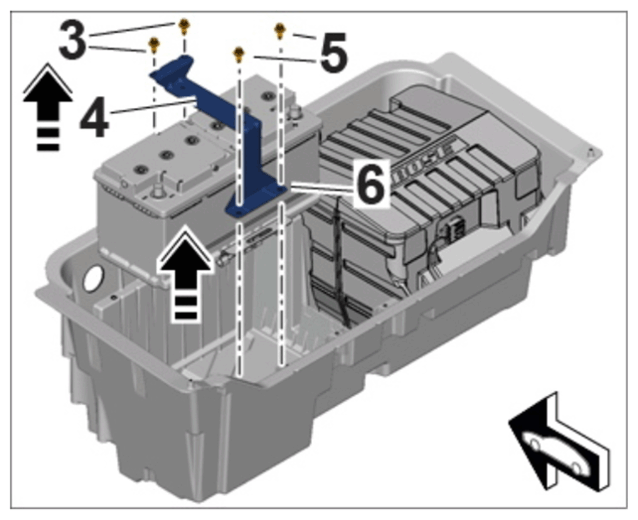

3. Unscrew and remove the two fastening screws -3-  on the retaining bar -4-  and the two fastening screws -5-  for the rail -6-  .

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Unscrewing fastening screws on retaining bar

4. Remove the rail and retaining bar.
5. Lift the battery up and out.
